Data Monitor

WARNING: This page is about a different car, the 2012 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

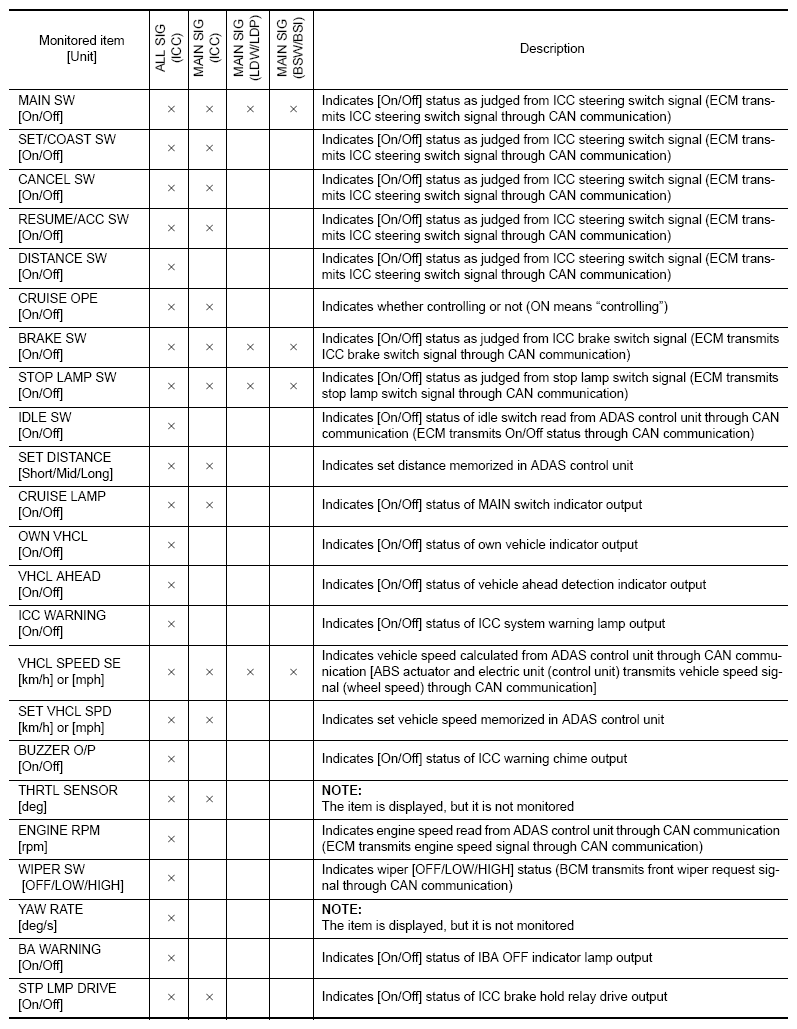

Fig 1: Self Diagnostic Data Monitored Item Chart (1 Of 4)
G08259780Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Self Diagnostic Data Monitored Item Chart (2 Of 4)
G08259781Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Self Diagnostic Data Monitored Item Chart (3 Of 4)
G08259782Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: Self Diagnostic Data Monitored Item Chart (4 Of 4)
G08259783Courtesy of NISSAN NORTH AMERICA, INC.
