Data Monitor

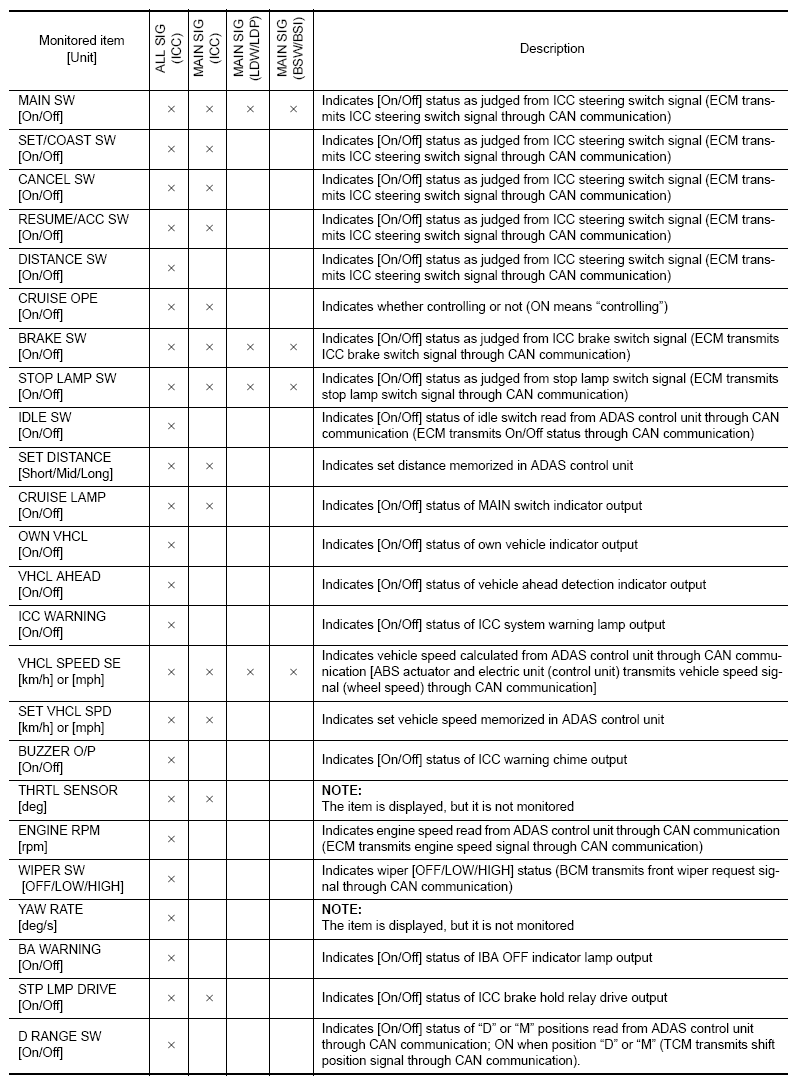

Fig 1: Self Diagnostic Result (1 Of 3)

G07024621

Courtesy of NISSAN MOTOR CO., U.S.A.

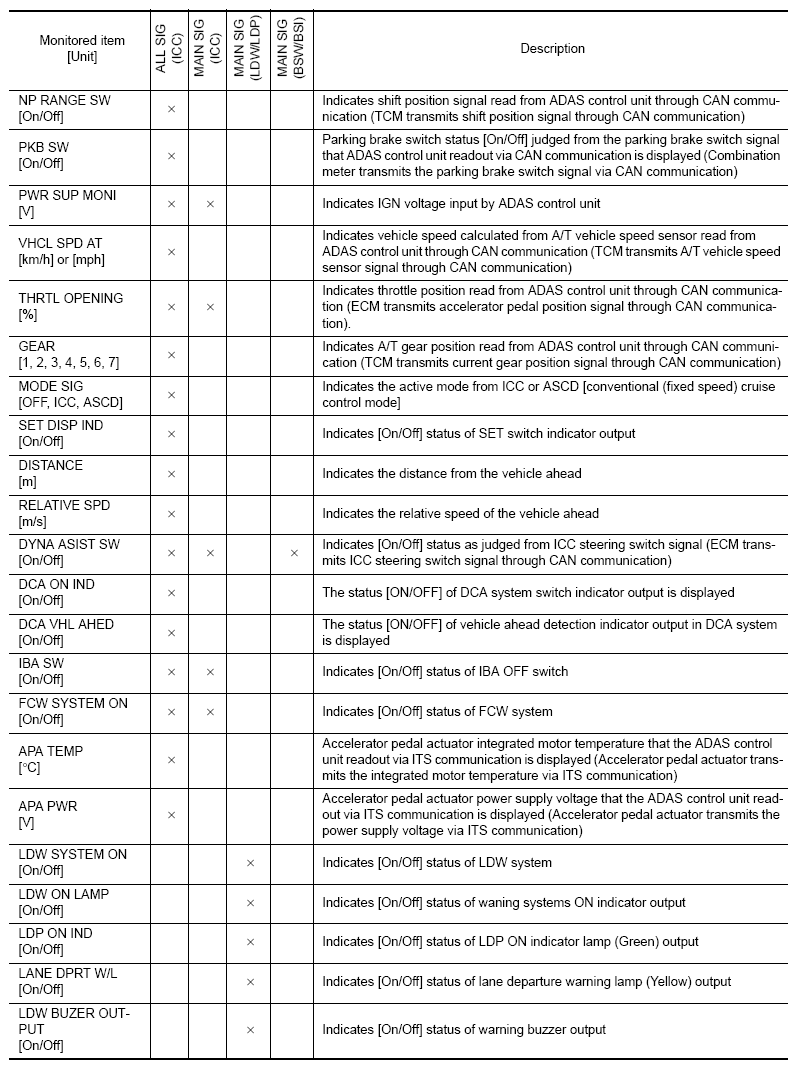

Fig 2: Self Diagnostic Result (2 Of 3)

G07024622

Courtesy of NISSAN MOTOR CO., U.S.A.

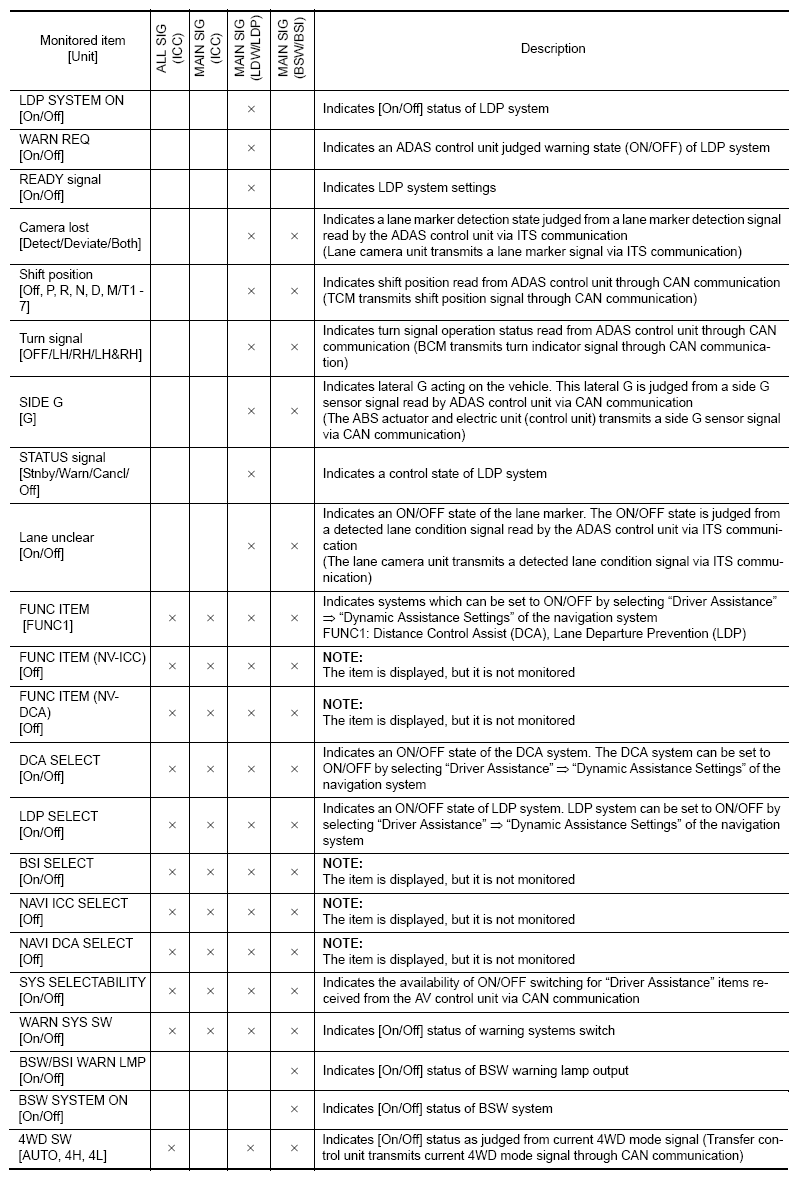

Fig 3: Self Diagnostic Result (3 Of 3)

G07024623

Courtesy of NISSAN MOTOR CO., U.S.A.
