EXIT ASSIST FUNCTION : System Diagram

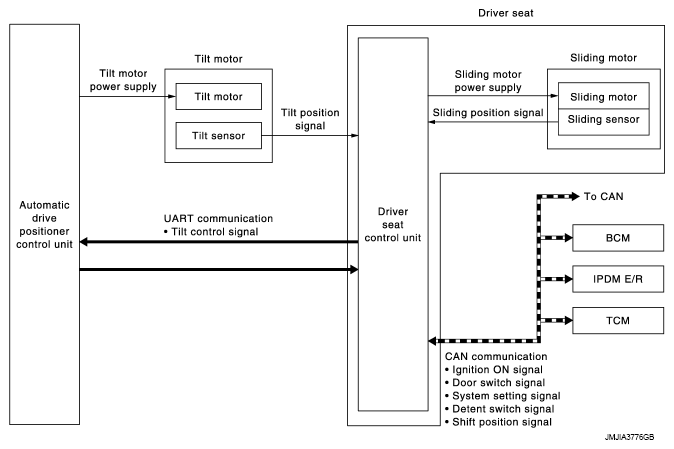

Fig 1: Automatic Drive Positioner System (Exit Assist Function) - System Diagram
G07022269Courtesy of NISSAN MOTOR CO., U.S.A.
