Occupant Detection System Control Unit Connector End View (B246)

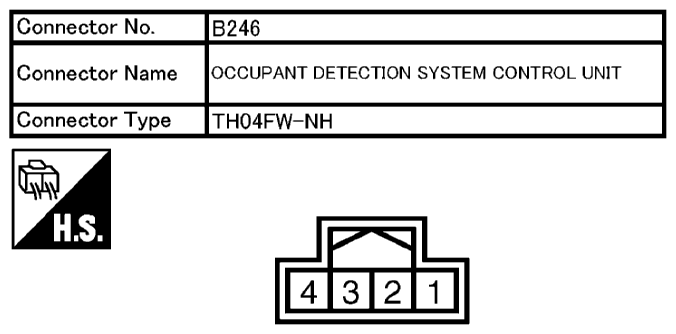

Fig 1: Occupant Detection System Control Unit Connector End View (B246)
G10695924Courtesy of NISSAN NORTH AMERICA, INC.
