Operation And Display

Plasmacluster™ ion display

• Plasmacluster™ control state is indicated on the front display.
• Plasmacluster ™ ion display is switched as shown in the figure depending on air flow.
  NOTE:

  • Plasmacluster™ ion technology developed by Sharp Corporation is installed in this item.
  • Plasmacluster™ is a trademark of Sharp Corporation.
  • When air flow is small
    Fig 1: Screen Display - Clean

    Courtesy of NISSAN MOTOR CO., U.S.A.
  • When air flow is large
    Fig 2: Screen Display - Quick Clean

    Courtesy of NISSAN MOTOR CO., U.S.A.

Controller (Preset Switch)

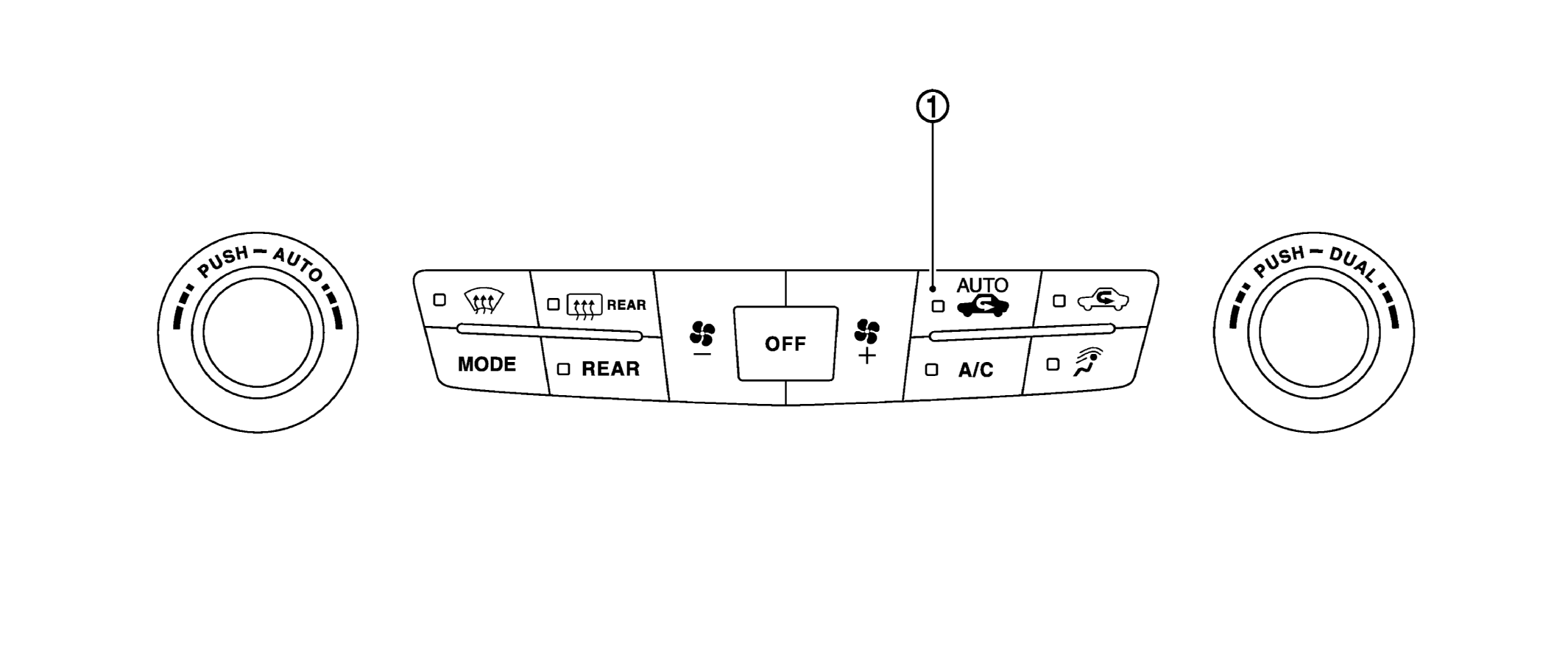

Fig 3: Identifying Control Switches

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Auto intake switch
   SWITCH OPERATION



   Switch name

   Function

   Auto intake switch

   Automatic intake control (exhaust gas / outside odor detecting mechanism) mode (switch indicator) changes between ON <=> OFF each time when auto intake switch is pressed while front blower motor is activated. When auto intake switch turns ON, front air conditioning system becomes the following status. A/C switch: ON Air inlet: Recirculation [After approximately 5 minutes, air inlet is switched to automatic intake control (exhaust gas / outside odor detecting mechanism).] When auto intake switch turns ON <=> OFF, air inlet becomes the fresh air intake. NOTE: Interlocking condition of A/C switch can be changed. Refer to "ACCS (ADVANCED CLIMATE CONTROL SYSTEM) : AUTO INTAKE SWITCH INTERLOCKING MOVEMENT CHANGE FUNCTION ". Auto intake switch does not turn ON during the following status. Air outlet: DEF Ambient temperature: -2°C (28°F) or less
