With ACCS (Advanced Climate Control System)

A/C Display

Front air conditioning system state is indicated on the display.
When "STATUS" on multifunction switch is pressed while front air conditioning system is in the ON position, the display changes to state indication display of front air conditioning system. When front air conditioning system is operated while navigation system or audio system is displayed, front air conditioning system state is indicated in the lower portion of display for several seconds.
When MODE switch is pressed while front air conditioning system is in the OFF position, state indication display is indicated for several seconds.

Display Screen

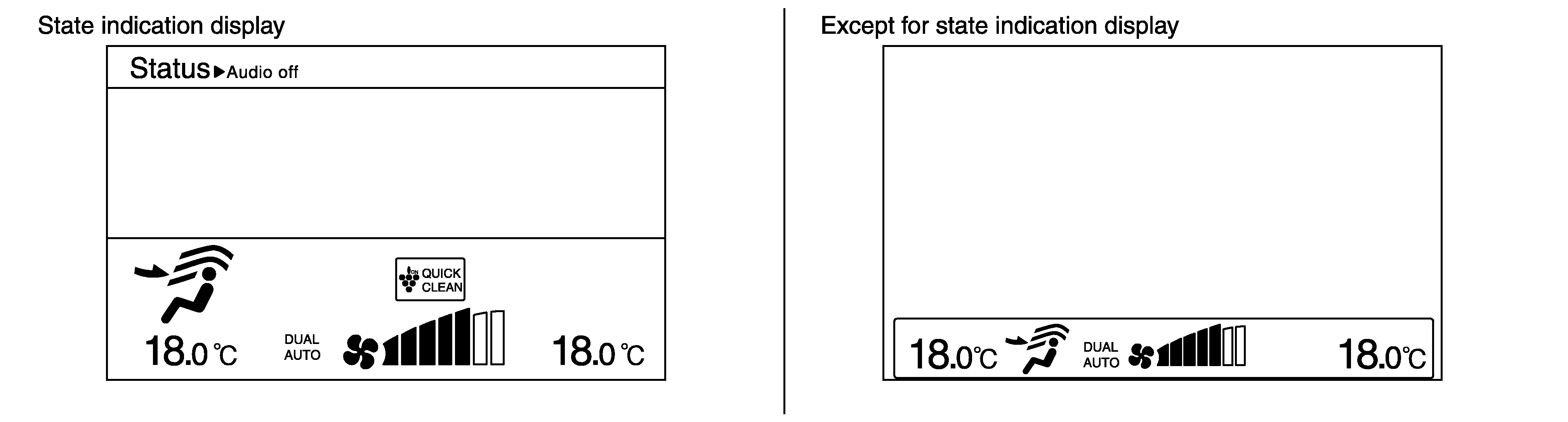

Fig 1: Screen Display - Status

Courtesy of NISSAN MOTOR CO., U.S.A.

Controller (Preset Switch)

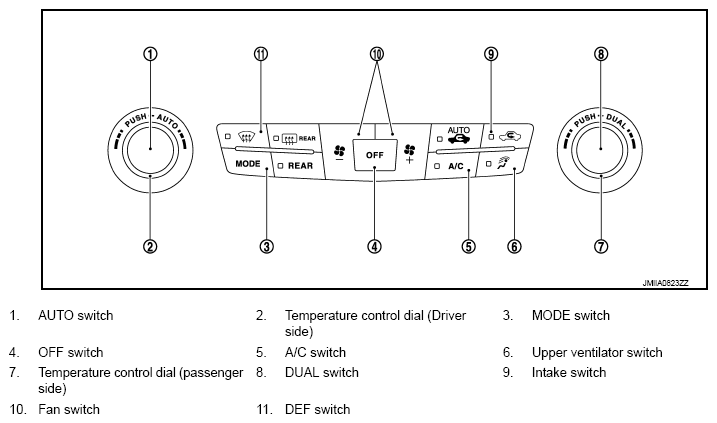

Fig 2: Identifying Control Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

Switch Operation

SWITCH OPERATION

AUTO switch	Turns the switch indicator lamp and "AUTO" indicator on the display ON, and then front air conditioning system becomes the following state. Air inlet: Automatic control Air outlet: Automatic control Blower fan: Automatic control Compressor: ON
A/C switch	Turns the compressor control (switch indicator) between ON <=> OFF each time while front blower fan is activated. NOTE: When front blower fan is OFF, the compressor control cannot be activated. When the compressor control (switch indicator) is in the OFF position, air inlet is fresh air intake (FRE).
Defroster (DEF) switch	Turns DEF mode (switch indicator) between ON <=> OFF each time. When DEF switch is pressed while front air conditioning system is in the ON position. When DEF mode is turned ON, front air conditioning system becomes the following state. Air inlet: Fresh air intake Air outlet: DEF Blower fan: Automatic control (If fan speed other than AUTO is selected before pressing DEF switch, fan speed is manual control.) Compressor: ON When DEF mode is turned OFF, front air conditioning system state returns to the previous state before DEF mode is selected. But, the following state is continued. Air inlet: Fresh air intake Compressor: ON When DEF switch is pressed while front air conditioning system is in the OFF position. When DEF mode is turned ON, front air conditioning system becomes the following state. Air inlet: Fresh air intake Air outlet: DEF Blower fan: Automatic control Compressor: ON When DEF mode is turned OFF, entire front air conditioning system is set to auto mode. NOTE: When DEF mode turns ON while front air conditioning system is in automatic control ("AUTO" is indicated), automatic control is released ("AUTO" turns OFF).
DUAL switch	Turns left and right ventilation temperature separately control (switch indicator) between ON <=> OFF each time. When DUAL switch indicator is ON, the driver side and passenger side temperatures can each be set independently. When DUAL switch indicator is OFF, the driver side outlet and setting temperature is applied to both sides. Left and right ventilation temperature separately control is cancelled by turning the DEF mode ON. NOTE: When front air conditioning system is in the OFF position, left and right ventilation temperature separately control can be selected only while front air conditioning system state (when MODE switch is pressed) is indicated on the display.
Fan switch (UP/DOWN)	Blower fan speed is manually controlled with these switches. Seven speeds are available for manual control (as shown on the display screen) NOTE: When fan switch is pressed while front air conditioning system is in OFF, front air conditioning system is activated. (Compressor control state returns to the previous state before front air conditioning system OFF.) When fan switch is pressed while front air conditioning system is in automatic control ("AUTO" is indicated), automatic control is released ("AUTO" turns OFF).
MODE switch	Selects air outlet sequentially from VENT ==> B/L ==> FOOT ==> D/F ==> VENT each time. NOTE: When front air conditioning system is in the OFF position, air outlet can be selected. When MODE switch is pressed while front air conditioning system is in automatic control ("AUTO" is indicated), automatic control is released ("AUTO" turns OFF).
OFF switch	Turns front air conditioning system OFF. When front air conditioning system turns OFF, air inlet and air outlet become the automatic control.
Intake switch	Air inlet changes between recirculation (REC) <=> fresh air intake (FRE) each time this switch is pressed. Intake switch indicator ON: Recirculation Intake switch indicator OFF: Fresh air intake NOTE: When front air conditioning system is in the OFF position, air inlet can be selected. When MODE switch and DEF switch is in the D/F or DEF position, air inlet cannot be selected to recirculation (REC).
Temperature control dial (driver side)	Selects set temperature within a range between 18.0°C (60°F) - 32.0°C (90°F) at a rate of 0.5°C (1.0°F) each time the dial is rotated. Clockwise rotation: Set temperature increases. Counterclockwise rotation: Set temperature decreases. NOTE: When front air conditioning system is in the OFF position, set temperature can be selected only while front air conditioning system state (when MODE switch is pressed) is indicated on the display.
Temperature control dial (passenger side)	Selects set temperature within a range between 18.0°C (60°F) - 32.0°C (90°F) at a rate of 0.5°C (1.0°F) each time the dial is rotated. Clockwise rotation: Set temperature increases. Counterclockwise rotation: Set temperature decreases. When the temperature control dial is turned, DUAL switch indicator turns ON. NOTE: When front air conditioning system is in the OFF position, set temperature can be selected only while front air conditioning system state (when MODE switch is pressed) is indicated on the display.
Upper ventilator switch	Turns the upper ventilator control (switch indicator) between ON <=> OFF each time while front blower fan is activated. NOTE: When front air conditioning system is in the OFF position and air outlet is DEF position, upper ventilator control cannot be activated. When front air conditioning system is in the OFF position, upper ventilator control can be selected only while front air conditioning system state (when MODE switch is pressed) is indicated on the display.
