Exploded View

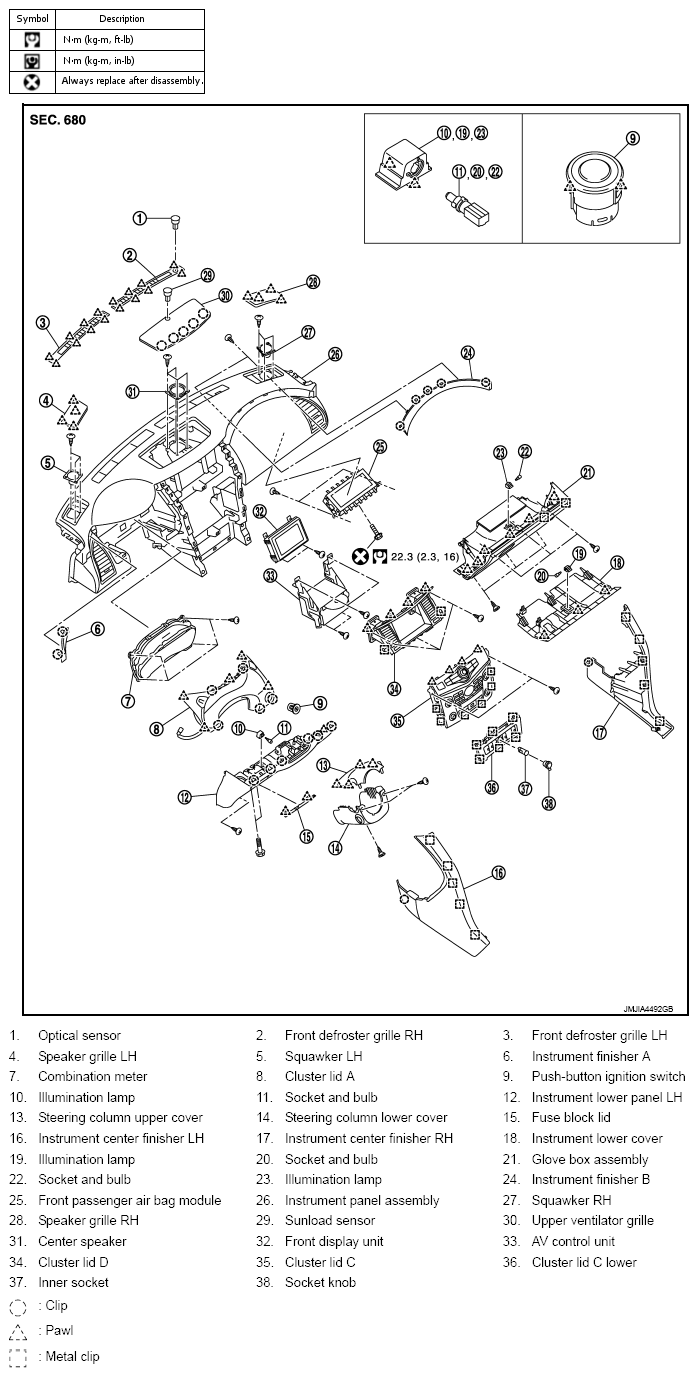

Fig 1: Instrument Panel Assembly Replacement Components With Torque Specifications
G07025487Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
