Component Parts Location

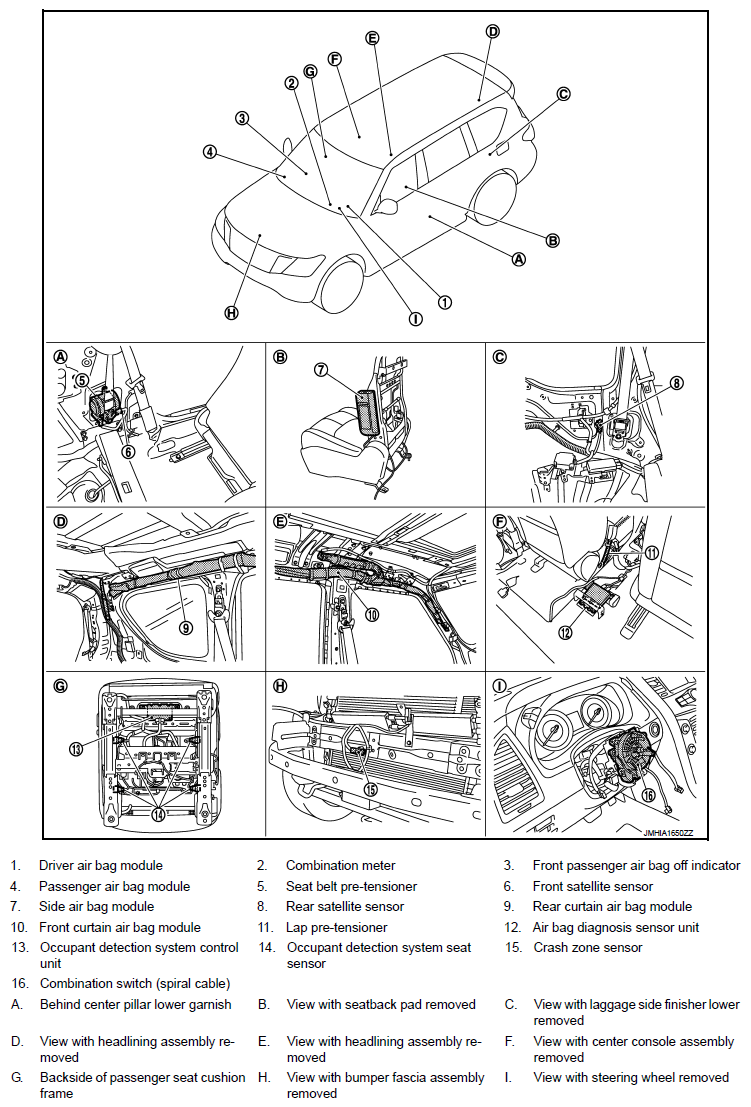

Fig 1: Identifying SRS Airbag Control System Components Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
