System Diagram

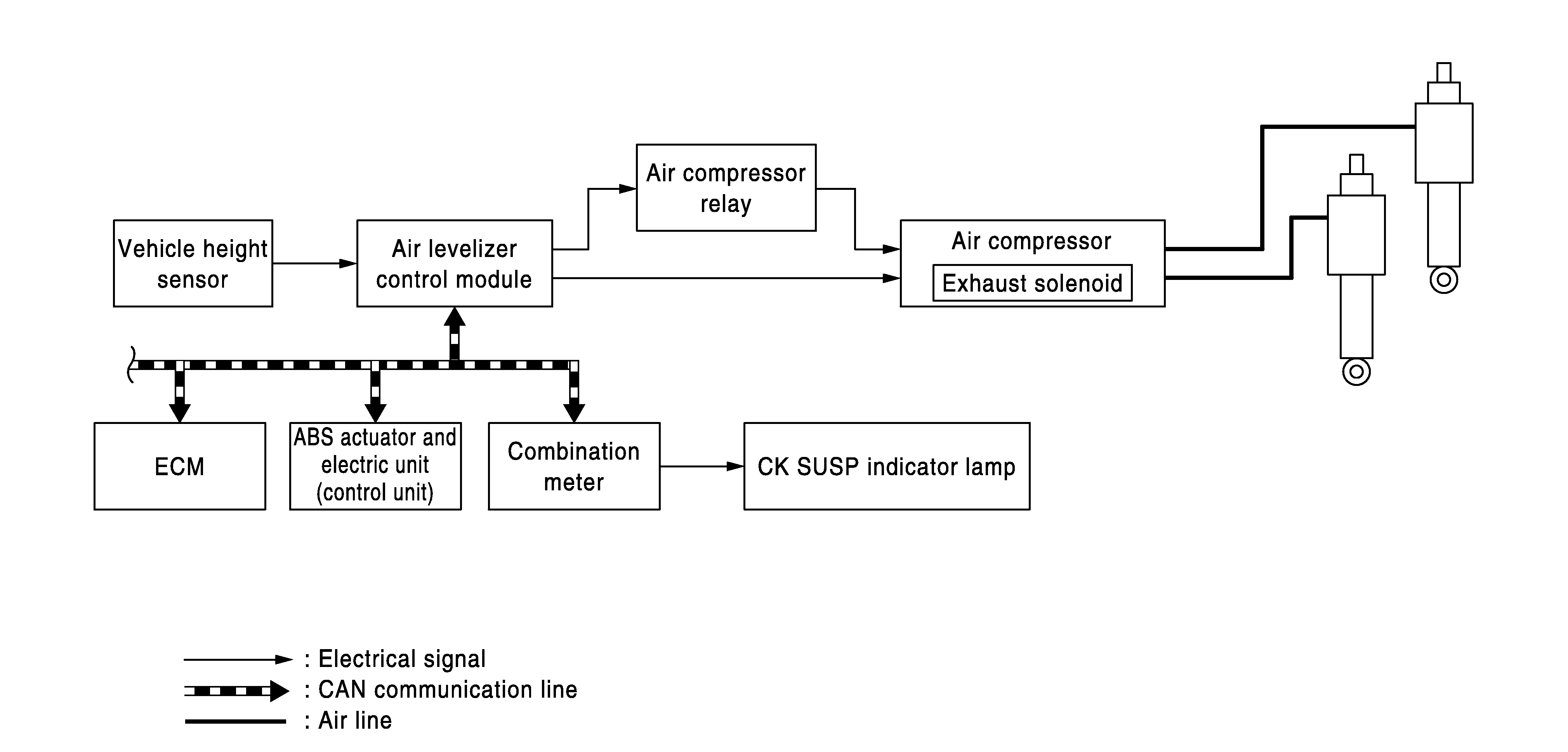

Fig 1: Air Levelizer Control System Can Communication
Courtesy of NISSAN MOTOR CO., U.S.A.
