Exploded View: Removal

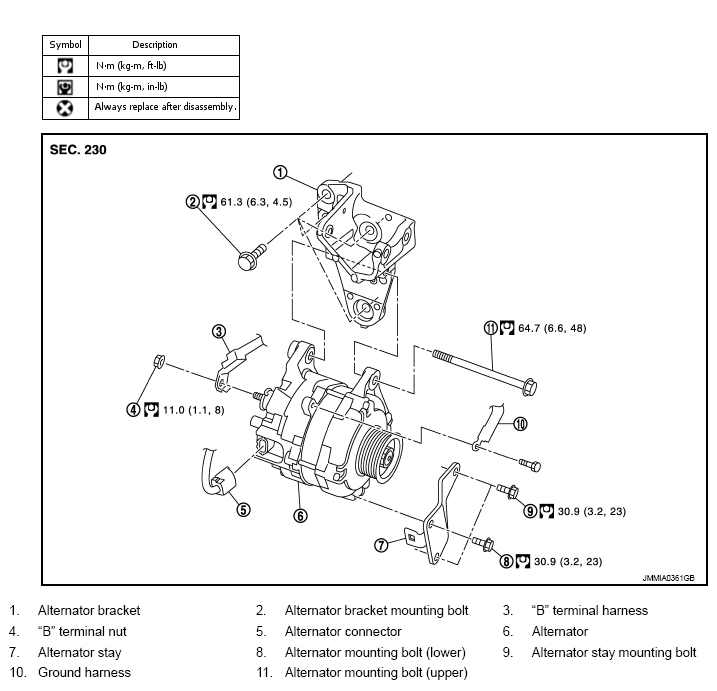

Fig 1: Alternator Replacement Components With Torque Specifications
G07026032Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
