Data Monitor

NOTE: SIGNAL B, SIGNAL C are displayed, but not used.

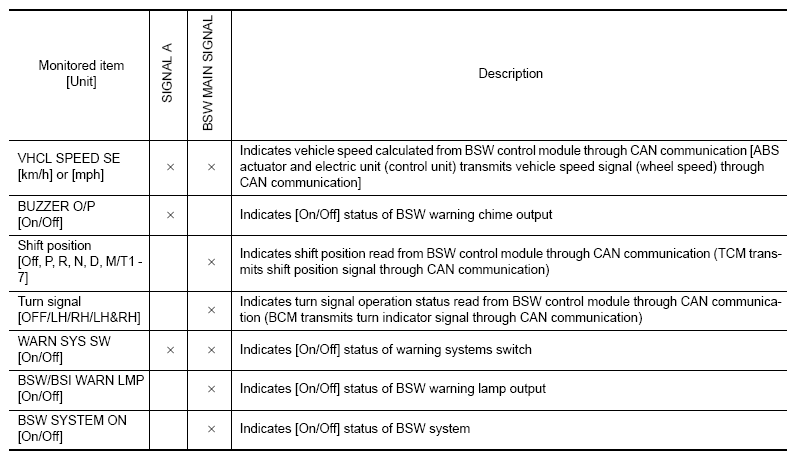

Fig 1: Data Monitored Item Chart
G08198935Courtesy of NISSAN NORTH AMERICA, INC.
