Basic Operations

Switches And Indicator/Warning Lamps

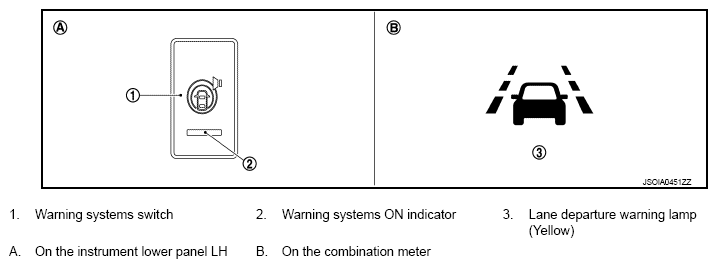

Fig 1: Identifying Warning Systems Switch, ON Indicator And Lane Departure Warning Lamp

Courtesy of NISSAN NORTH AMERICA, INC.

Bulb Check Action and Fail-safe Indication

Vehicle condition/Driver's operation

Warning systems ON indicator

Indication on the combination meter

Ignition switch: OFF => ON

2 sec. ON

When DTC is detected
(Except "C1B01" and "C1B03")

ON⁽¹⁾

Camera aiming is not completed
("C1B01" is detected)

ON⁽¹⁾

Temporary disabled status at high temperature
("C1B03" is detected)

Blink⁽¹⁾

OFF

NOTE:

⁽¹⁾	The FCW system operates.
