Exploded View: Removal

Refer to "EXPLODED VIEW ".

DISASSEMBLY

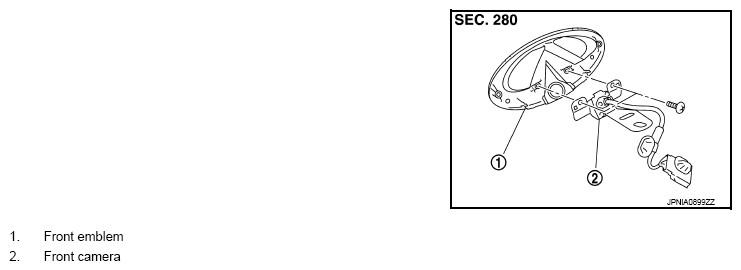

Fig 1: Identifying Front Emblem And Camera
G08196913Courtesy of NISSAN NORTH AMERICA, INC.
