Cross-Sectional View

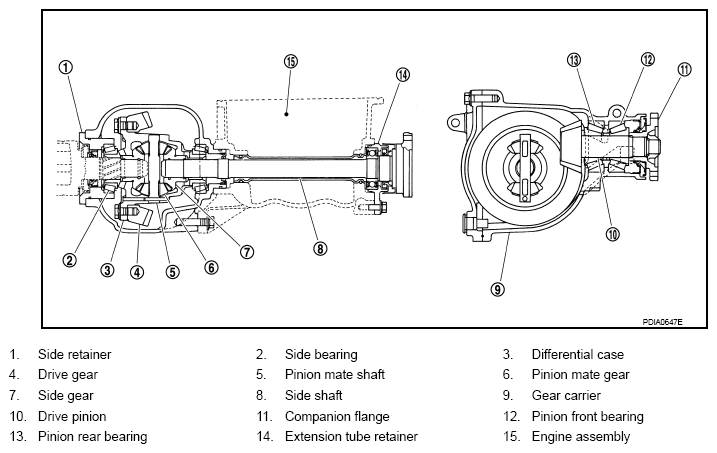

Fig 1: Cross-Sectional View Of Front Final Drive Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
