Exploded View

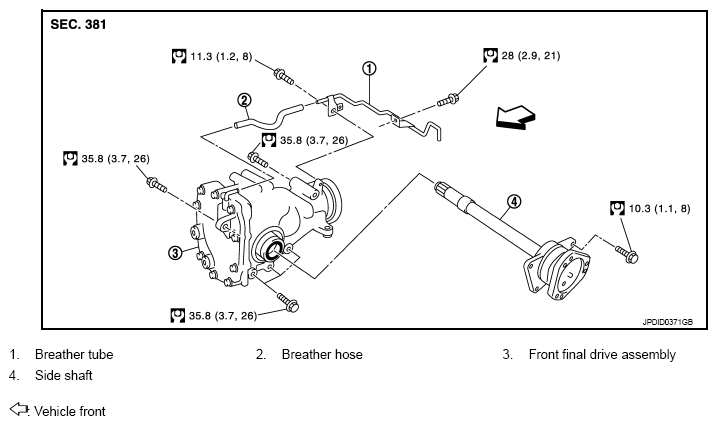

Fig 1: Exploded View Of Front Final Drive Assembly With Torque Specifications
G08195139Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "SYMBOLS " for symbols not described above.
