Exploded View

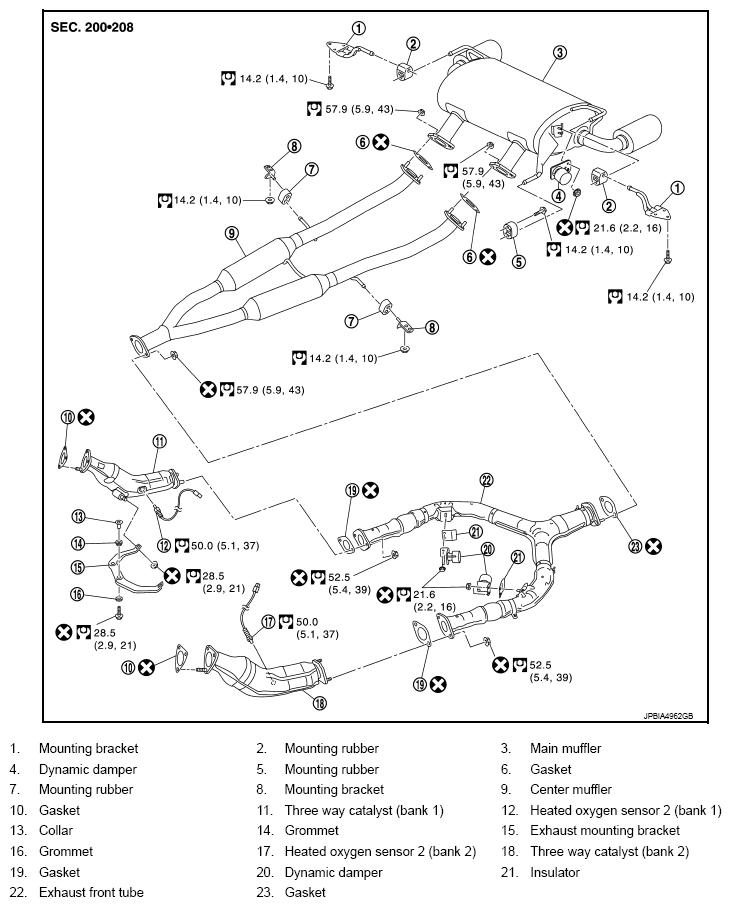

Fig 1: Exploded View Of Exhaust System With Torque Specifications
G08194088Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
