FRONT POWER SOCKET: Exploded View

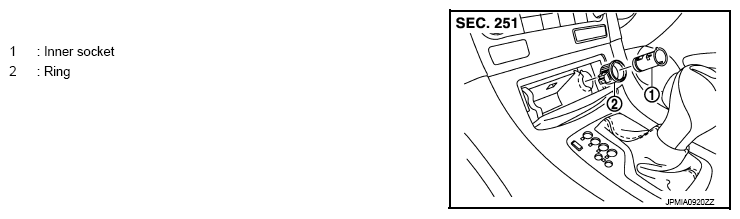

Fig 1: Identifying Inner Socket And Ring

G08194894

Courtesy of NISSAN NORTH AMERICA, INC.
