Disassembly and Assembly: Disassembly

  1. Remove console lid assembly.
    1. Open the console lid.

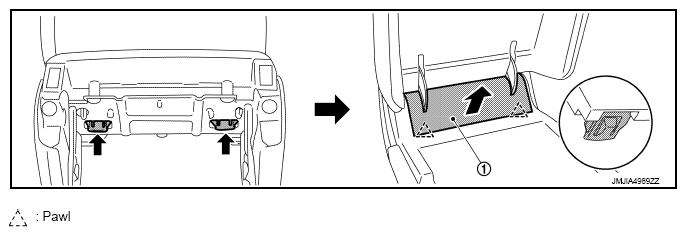

    2. From the back of the center console, push the pawls forward to remove the console mask (1).
      Fig 1: Removing Console Mask
      G08194635Courtesy of NISSAN NORTH AMERICA, INC.
    3. Remove console lid assembly (1) fixing screws (A), and then remove console lid assembly.
      Fig 2: Identifying Console Lid Assembly And Fixing Screws
      G05729923Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove console pocket.
  3. Reverse a center console assembly.
  4. Remove console sub harness.
    1. Remove console sub harness (1) fixing screws (A).
    2. Remove console sub harness fixing clip (B).
    3. Disconnect switch connectors.
      Fig 3: Identifying Console Sub Harness, Fixing Clips And Screws
      G05729924Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove switch panel.
    1. Remove switch panel (1) fixing screws (A).
    2. Pull up switch panel.
      Fig 4: Identifying Console Assembly Switch Panel And Fixing Screws
      G05729925Courtesy of NISSAN NORTH AMERICA, INC.

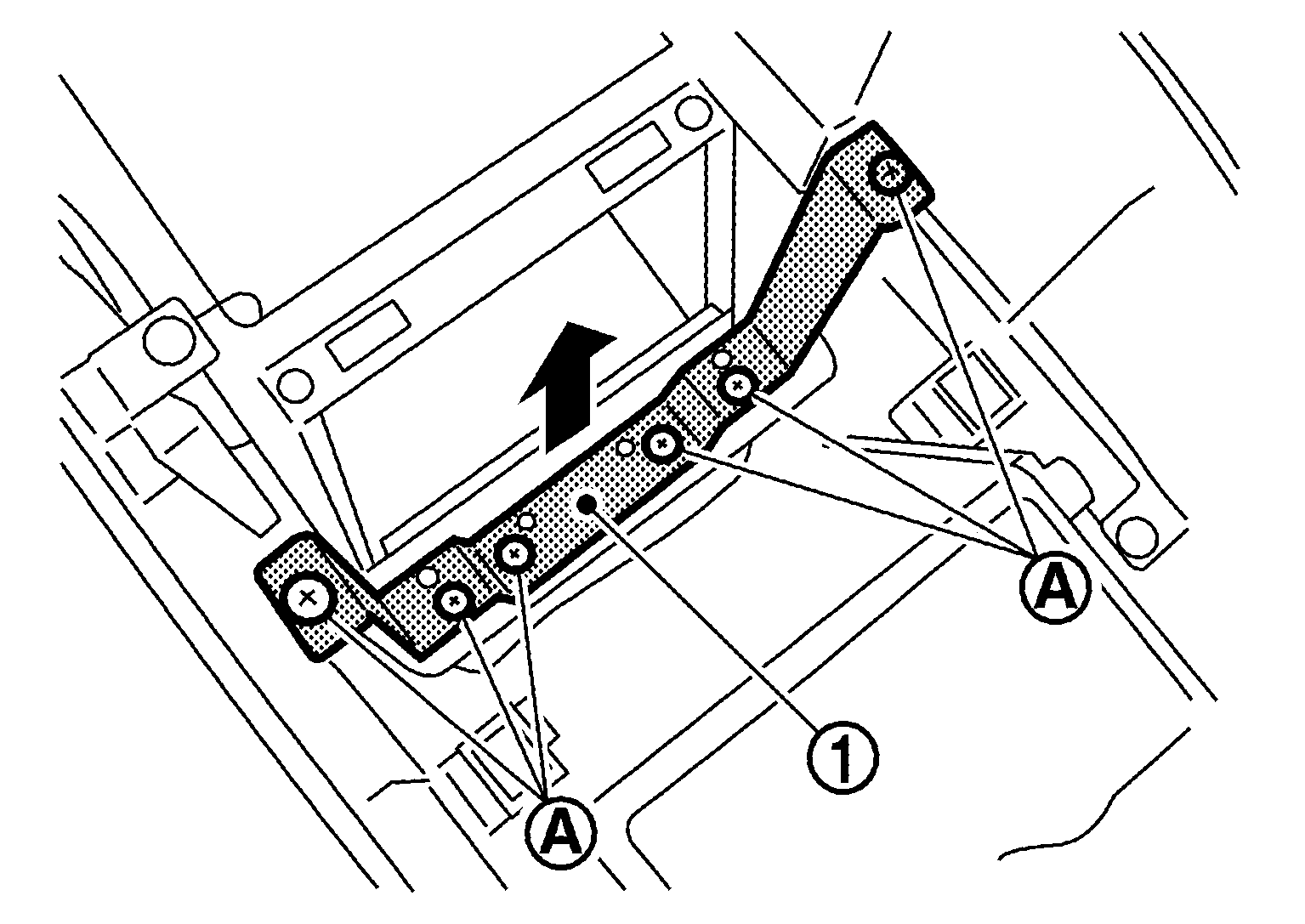

  6. Remove console center bracket.
    1. Remove console center bracket (1) fixing screws (A).
    2. Pull up console center bracket.
      Fig 5: Removing Console Center Bracket
      G07166587Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove console pad LH.
    1. Remove console pad LH (1) fixing screws (A).
    2. Pull the console pad LH crosswise.
      Fig 6: Removing Console Pad LH
      G05729926Courtesy of NISSAN NORTH AMERICA, INC.
  8. Remove console pad RH.
    1. Remove console pad RH (1) fixing screws (A).
    2. Pull the console pad RH crosswise.
      Fig 7: Removing Console Pad RH
      G05729927Courtesy of NISSAN NORTH AMERICA, INC.
  9. Remove cup holder assembly.
    1. Remove cup holder assembly (1) fixing screws (A).
    2. Pull up cup holder assembly.
      Fig 8: Identifying Cup Holder Assembly And Fixing Screws
      G05729930Courtesy of NISSAN NORTH AMERICA, INC.

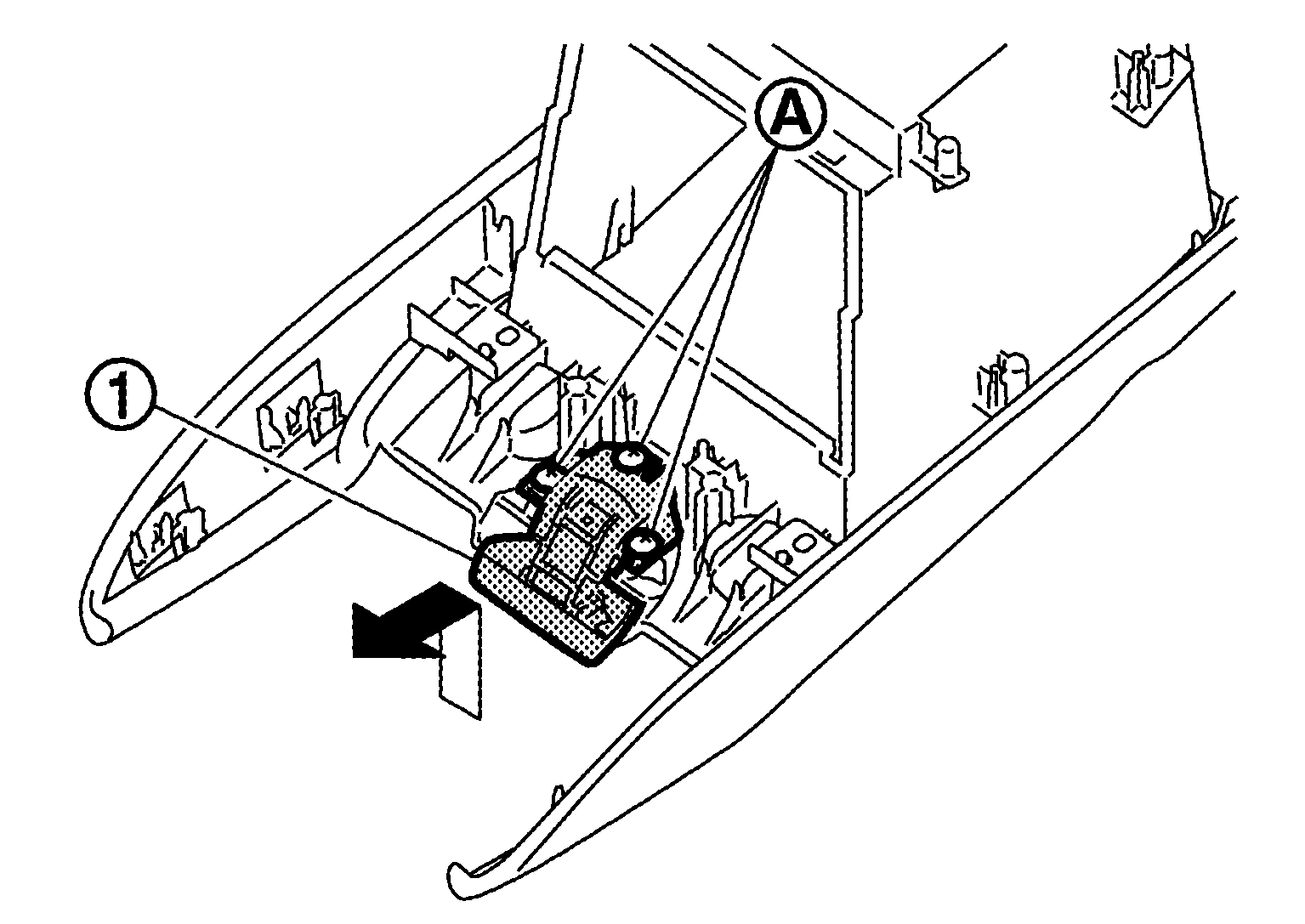

  10. Remove console lid release button.
    1. Remove console lid release button (1) fixing screws (A).
    2. Pull toward the arrow direction in the figure.
      Fig 9: Removing Console Lid Release Button
      G07166591Courtesy of NISSAN NORTH AMERICA, INC.
  11. Remove console upper bracket.
    1. Remove console upper bracket (1) fixing screws (A).
    2. Pull up console upper bracket.
      Fig 10: Removing Console Upper Bracket
      G05729929Courtesy of NISSAN NORTH AMERICA, INC.
