Exploded View (AWD)

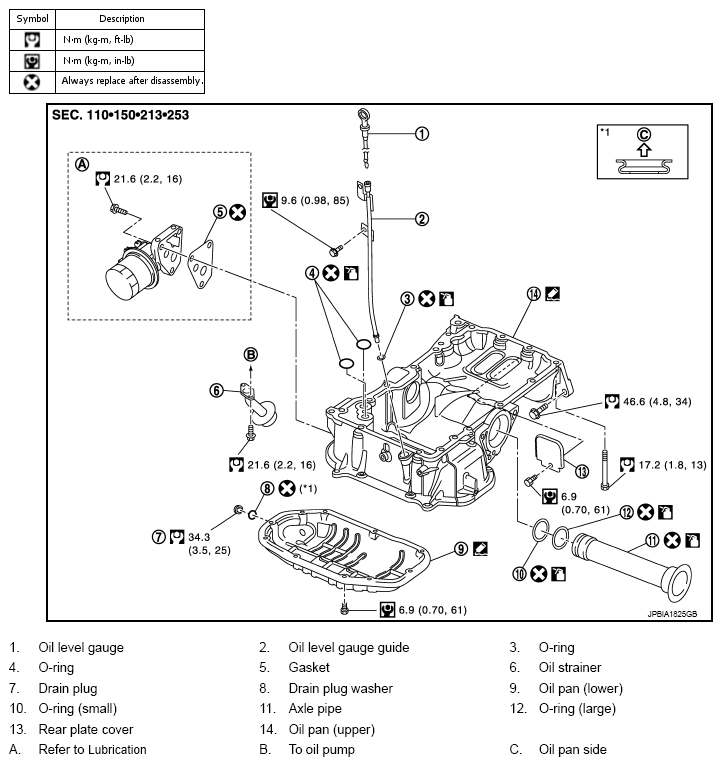

Fig 1: Exploded View Of Oil Pan (Lower) With Torque Specifications (AWD)
G07164432Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
