Connecting Rod Big End Diameter

Install connecting rod bearing cap without installing connecting rod bearing, and tightening connecting rod bolts to the specified torque. Refer to "DISASSEMBLY AND ASSEMBLY " for the tightening procedure.
1: Connecting rod

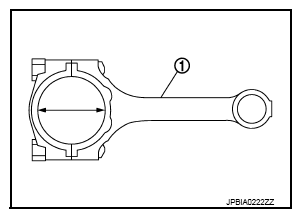

Fig 1: Identifying Connecting Rod
Courtesy of NISSAN NORTH AMERICA, INC.
Measure the inner diameter of connecting rod big end with an inside micrometer.
Standard: Refer to "CYLINDER BLOCK ".
If out of the standard, replace connecting rod assembly.
