UNDERSIZE Bearing Usage Guide

When the specified main bearing oil clearance is not obtained with standard size main bearings, use undersize (US) bearing.
When using undersize (US) bearing, measure the main bearing inner diameter with bearing installed, and grind main journal so that the main bearing oil clearance satisfies the standard.

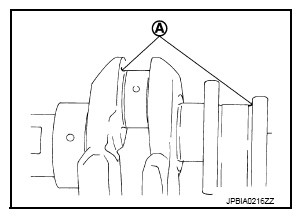

CAUTION: In grinding crankshaft main journal to use undersize bearings, keep the fillet R (A) [1.5 - 1.7 mm (0.059 - 0.067 in)].

Fig 1: Identifying Crankshaft Fillet Area
Courtesy of NISSAN NORTH AMERICA, INC.

Bearing undersize table: Refer to "MAIN BEARING ".
