ICC Steering Switch
WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

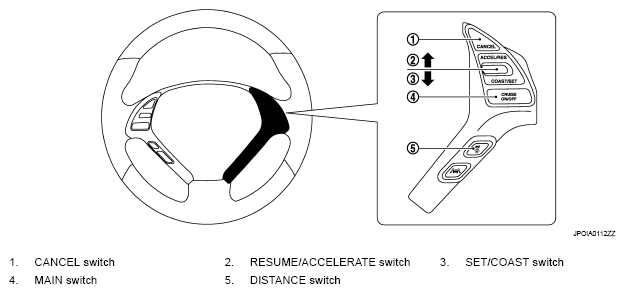

ICC system is operated by MAIN switch and four control switches, all mounted on the steering wheel.
NOTE:
The on board self-diagnosis function of the ICC system can be started with the RESUME/ACCELERATE switch and SET/COAST switch. Refer to DIAGNOSIS DESCRIPTION
.
In Vehicle-To-Vehicle Distance Control Mode
IN VEHICLE-TO-VEHICLE DISTANCE CONTROL MODE
| No. | Switch name | Description |
|---|---|---|
| 1 | CANCEL switch | Deactivates system without erasing set speed. |
| 2 | RESUME/ACCELERATE switch | Resumes set speed or increases speed incrementally. |
| 3 | SET/COAST switch | Sets desired cruise speed or reduces speed incrementally. |
| 4 | DISTANCE switch | Changes the following distance from: Long, Middle, Short. |
| 5 | MAIN switch | Master switch to activate the system (Press for less than 1.5 seconds). |
In Conventional (Fixed Speed) Cruise Control Mode
IN CONVENTIONAL (FIXED SPEED) CRUISE CONTROL MODE
| No. | Switch name | Description |
|---|---|---|
| 1 | CANCEL switch | Deactivates system without erasing set speed. |
| 2 | RESUME/ACCELERATE switch | Resumes set speed or increases speed incrementally. |
| 3 | SET/COAST switch | Sets desired cruise speed or reduces speed incrementally. |
| 4 | DISTANCE switch | Ineffective in this mode. |
| 5 | MAIN switch | Master switch to activate the system (Press for more than 1.5 seconds). |
