Exploded View

WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

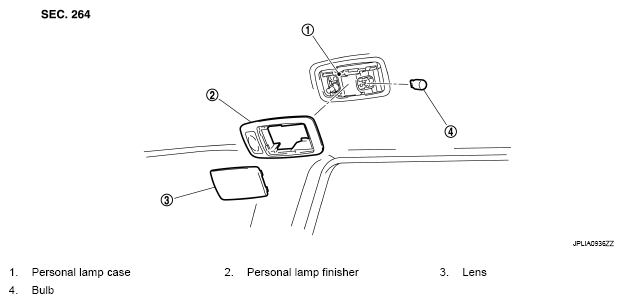

Fig 1: Exploded View Of Personal Lamp Replacement Components

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Replace the personal lamp case as a set (right and left). After removing the headlining assembly, remove the personal lamp case. Refer to EXPLODED VIEW .
