Warning Systems Switch Connector End View (M29)

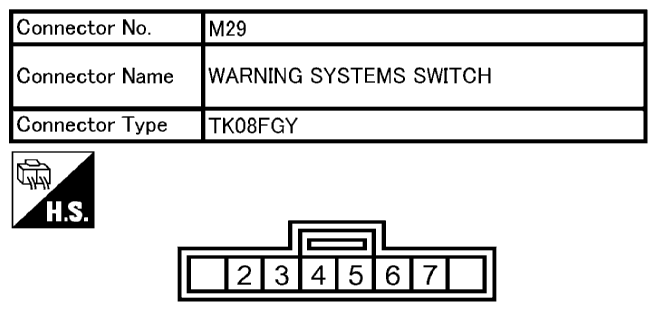

Fig 1: Warning Systems Switch Connector End View (M29)
G10675120Courtesy of NISSAN NORTH AMERICA, INC.
