WITH ELECTRIC MOTOR: Exploded View

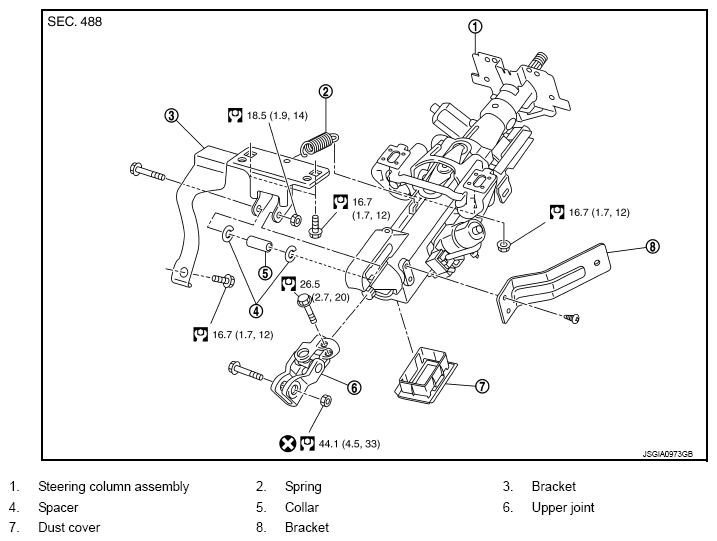

Fig 1: Exploded View Of Steering Column With Torque Specifications (With Electric Motor)
G08194323Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
