Exploded View

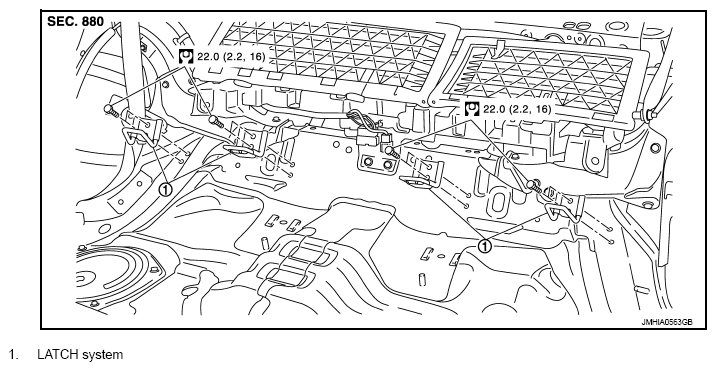

Fig 1: Exploded View Of Latch System For Children With Torque Specifications
G08194456Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
