Exploded View: Disassembly

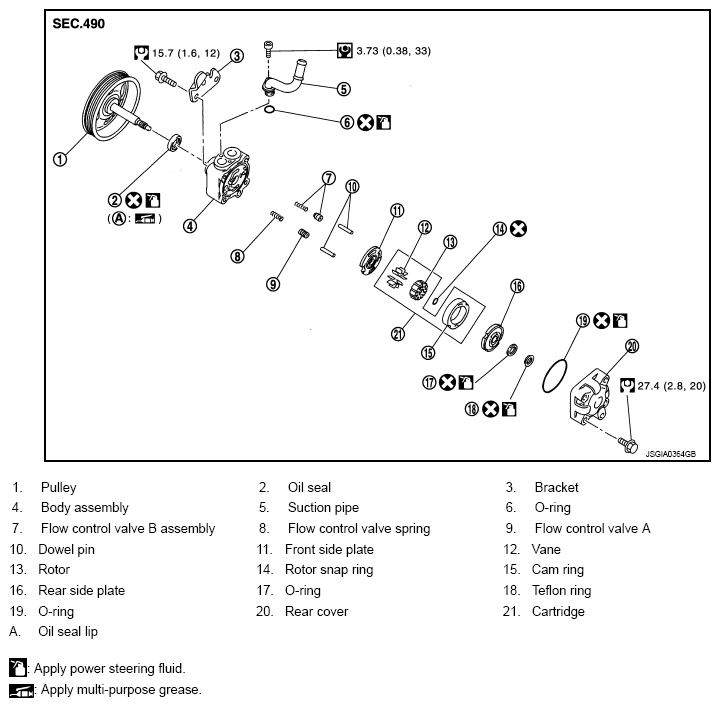

Fig 1: Disassembled View Of Power Steering Oil Pump With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
