Component Parts Location

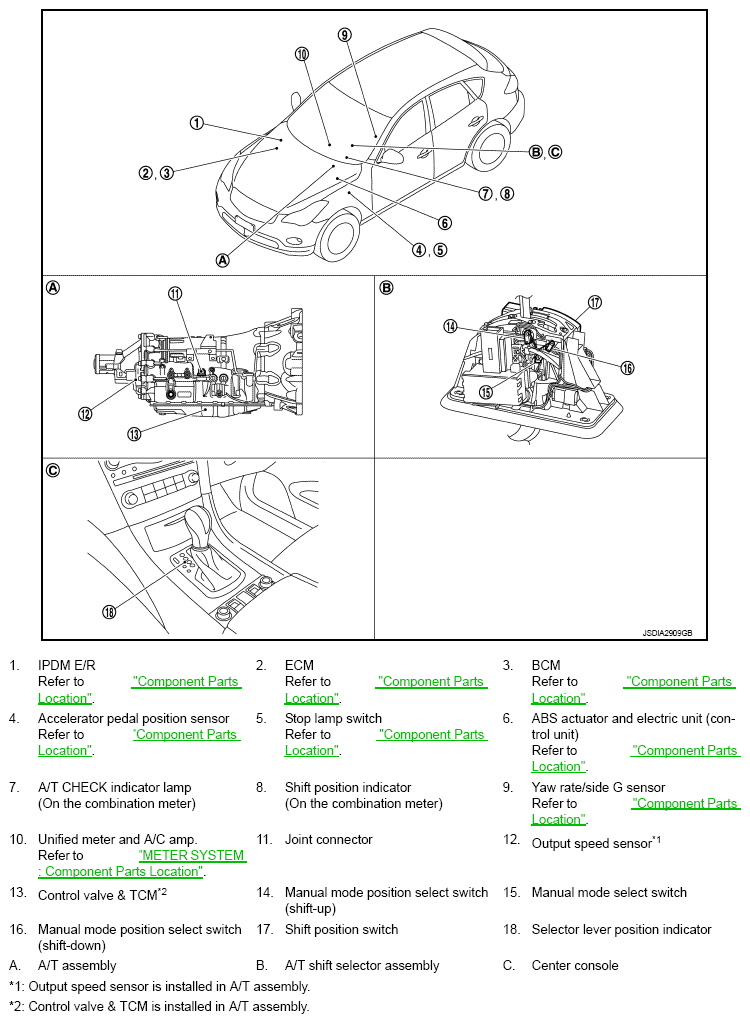

Fig 1: Lock-Up Control Components Location

G08197053

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: The following components are included in control valve & TCM :

TCM
Input speed sensor 1, 2
A/T fluid temperature sensor
Transmission range switch
Direct clutch solenoid valve
High and low reverse clutch solenoid valve
Input clutch solenoid valve
Front brake solenoid valve
Low brake solenoid valve
Anti-interlock solenoid valve
2346 brake solenoid valve
Line pressure solenoid valve
Torque converter clutch solenoid valve
