Direct Clutch: Assembly

Install direct clutch component part (drive plates, driven plates, retaining plate and dish plate) to direct clutch drum.

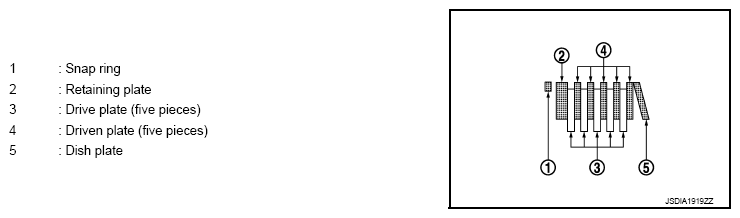

Fig 1: Identifying Snap Ring, Retaining Plate, Drive Plate, Driven Plate And Dish Plate
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Check the order of plates.
Install snap rings to direct clutch drum using a flat-bladed screwdriver.

CAUTION:

Be careful not to scratch direct clutch drum and direct clutch retaining plate.
Be careful not to damage snap ring.

Fig 2: Installing Snap Ring To High And Low Reverse Clutch Drum

G04876143

Courtesy of NISSAN NORTH AMERICA, INC.
