Basic Operations

Switches And Indicator/Warning Lamps

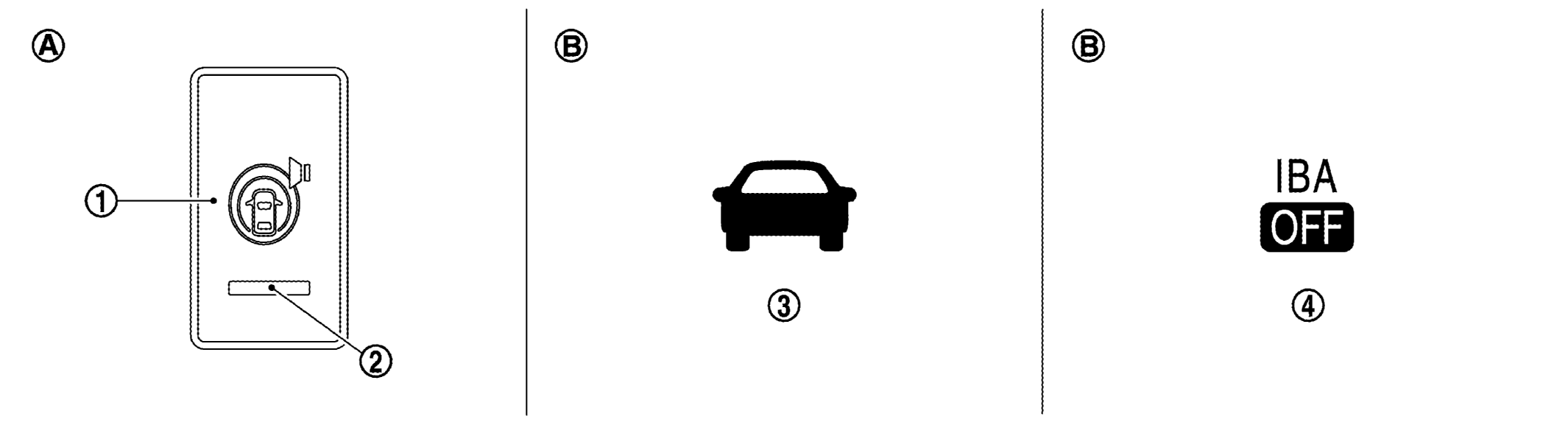

Fig 1: Identifying Switches And Indicator/Warning Lamps
G08198865Courtesy of NISSAN NORTH AMERICA, INC.

Fail-safe Indication

Vehicle condition Indication on the combination meter
  • When the FCW system malfunctions
  • When the sensor window is dirty
  • When driving into a strong light (i.e., sunlight)
NOTE: Check that the IBA system is not OFF. The indicator lamp is shared with IBA system.
G05983419Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: Warning systems ON indicator blinks when "C1B03" is detected.
