2WD models

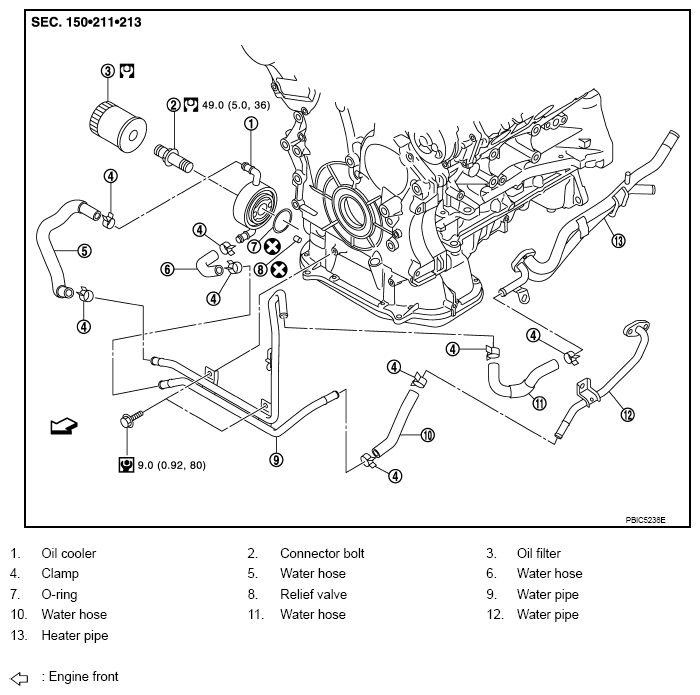

Fig 1: Exploded View Of Oil Cooler With Torque Specifications (2WD Models)
G08209908Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
