Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2011 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Note the following, and assemble in the reverse order of disassembly.

Install oil pump inner rotor with the groove (C) faced to oil pump cover side (B).

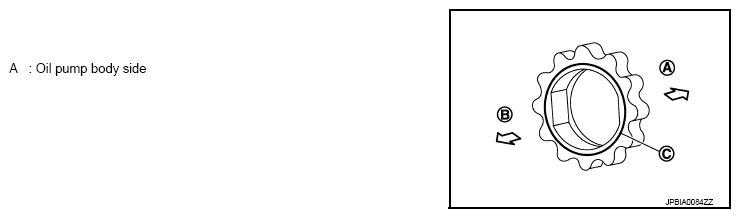

Fig 1: Identifying Oil Pump Inner Rotor With Groove Faced To Oil Pump Cover Side
Courtesy of NISSAN MOTOR CO., U.S.A.
