CAN Communication Signal Chart

WARNING: This page is about a different car, the 2011 Infiniti FX50 and 2011 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Refer to "HOW TO USE CAN COMMUNICATION SIGNAL CHART " for how to use CAN communication signal chart.

NOTE: Refer to "ABBREVIATION LIST " for the abbreviations of the connecting units.

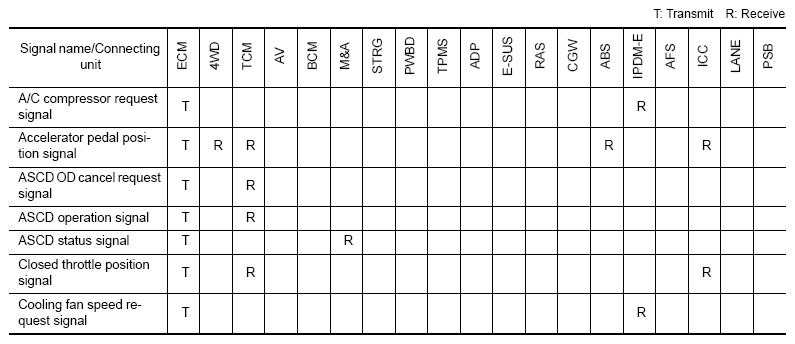

Fig 1: CAN Communication Signal Chart (1 Of 6)

G07231970

Courtesy of NISSAN MOTOR CO., U.S.A.

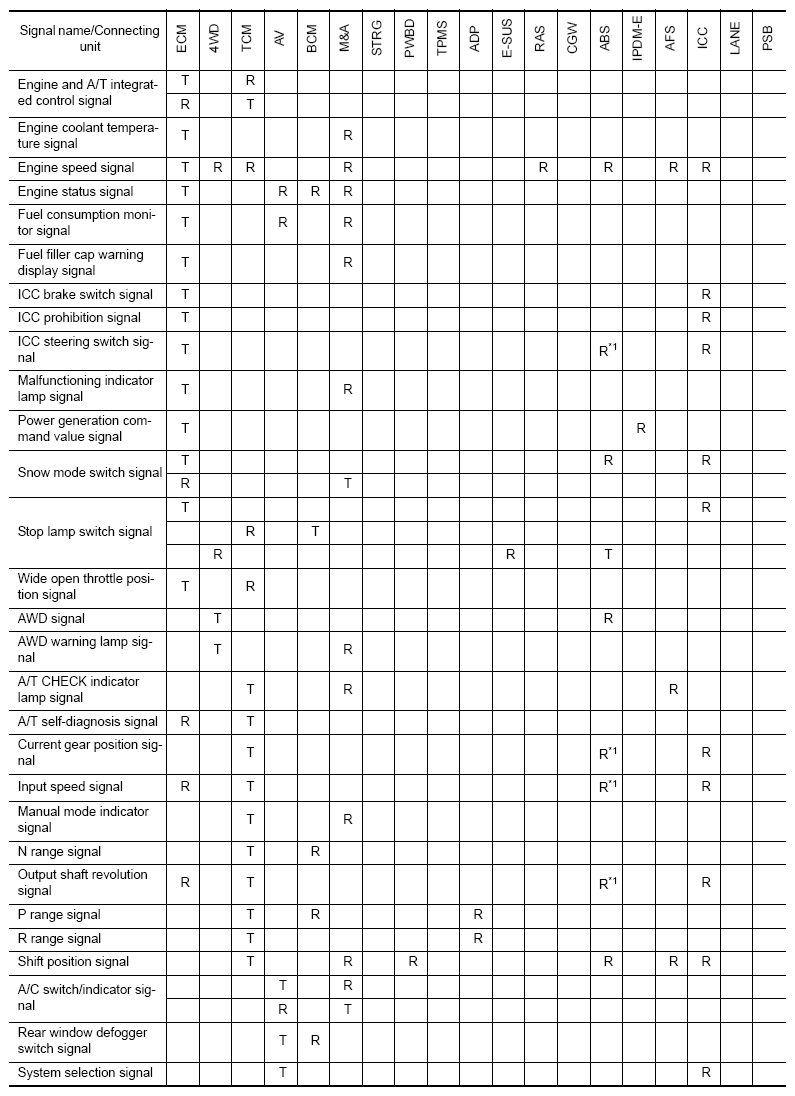

Fig 2: CAN Communication Signal Chart (2 Of 6)

G07231971

Courtesy of NISSAN MOTOR CO., U.S.A.

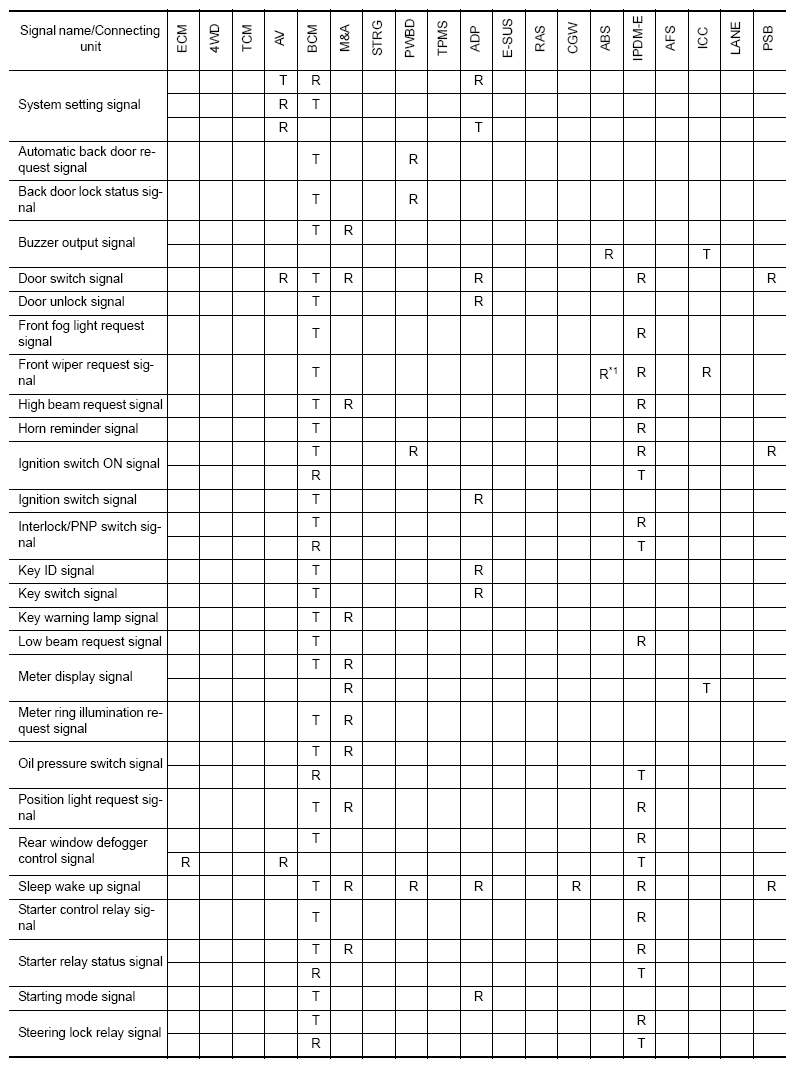

Fig 3: CAN Communication Signal Chart (3 Of 6)

G07231972

Courtesy of NISSAN MOTOR CO., U.S.A.

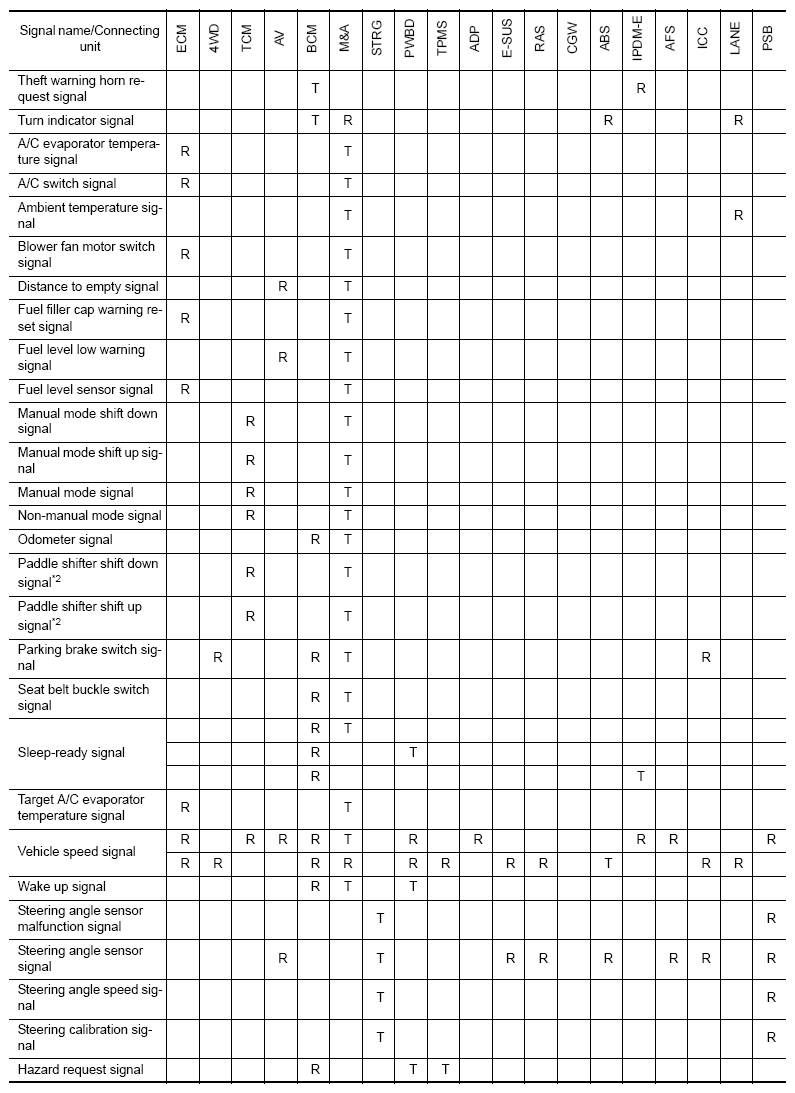

Fig 4: CAN Communication Signal Chart (4 Of 6)

G07231973

Courtesy of NISSAN MOTOR CO., U.S.A.

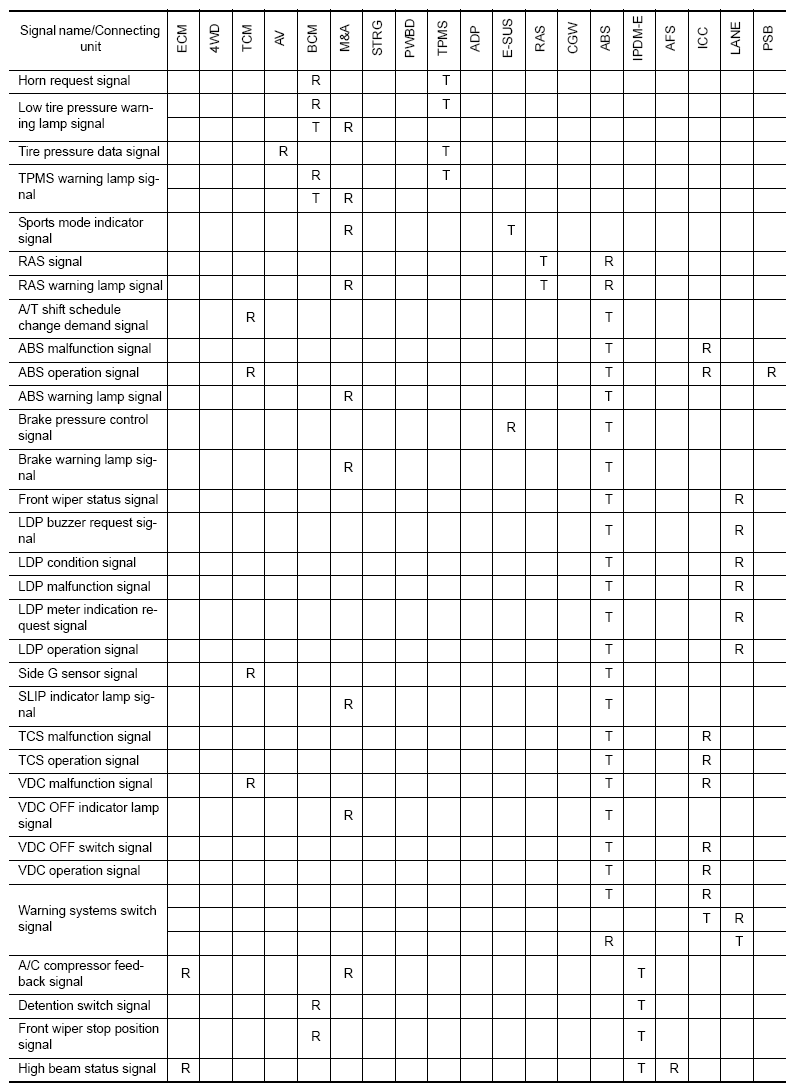

Fig 5: CAN Communication Signal Chart (5 Of 6)

G07231974

Courtesy of NISSAN MOTOR CO., U.S.A.

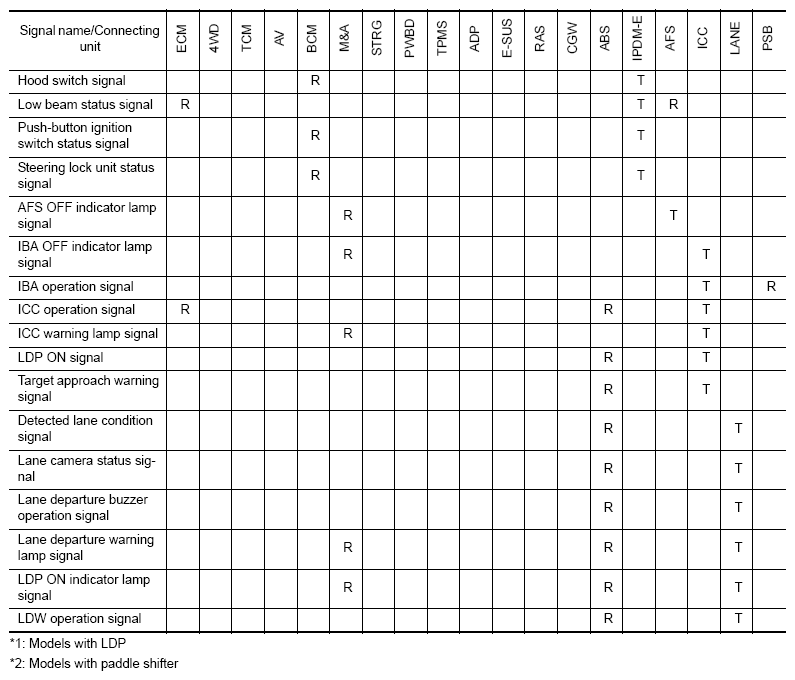

Fig 6: CAN Communication Signal Chart (6 Of 6)

G07231975

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: CAN data of the air bag diagnosis sensor unit is not used by usual service work, thus it is omitted.
