Component Parts Location

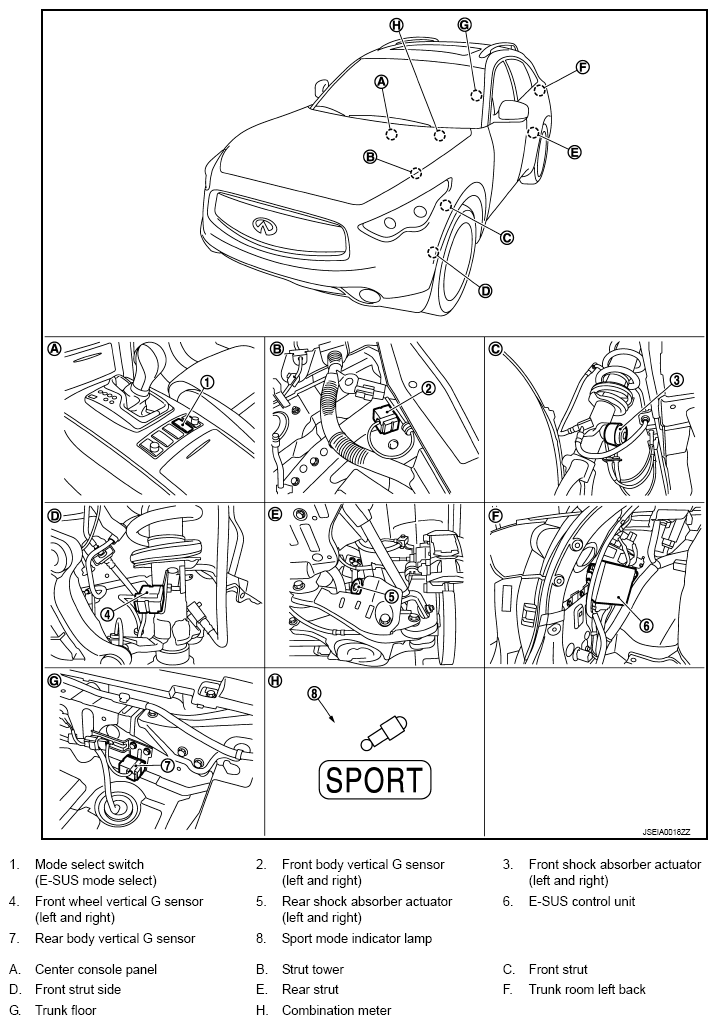

Fig 1: Continuous Damping Control System Components Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
