ASC (ADAPTIVE SHIFT CONTROL): System Diagram

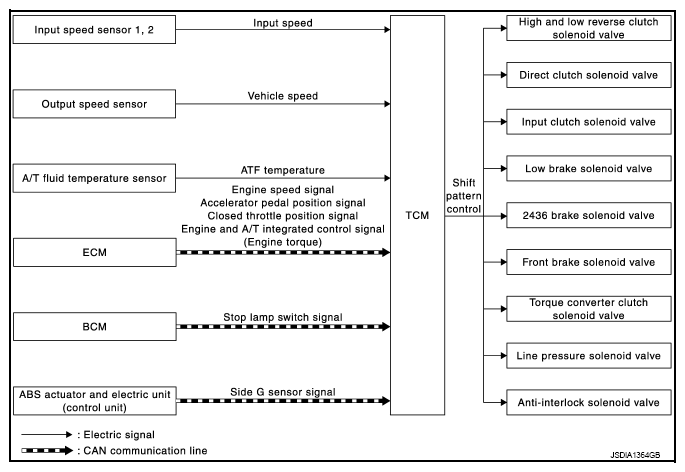

Fig 1: Adaptive Shift Control (ASC) - System Diagram
G08217211Courtesy of NISSAN NORTH AMERICA, INC.
