Exploded View

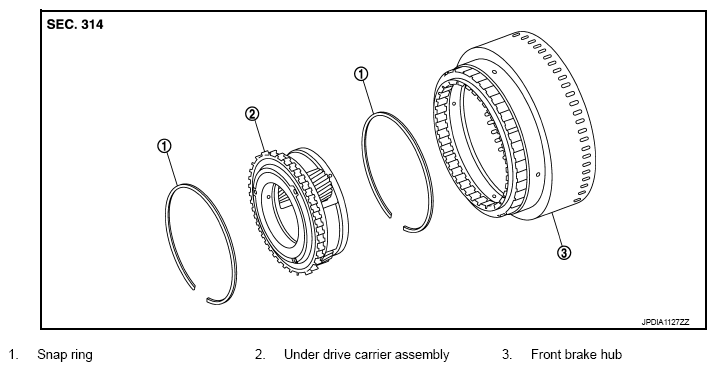

Fig 1: Identifying Under Drive Carrier, Front Brake Hub And Snap Ring
G08217588Courtesy of NISSAN NORTH AMERICA, INC.
