Exit Assist Function: Component Parts Location

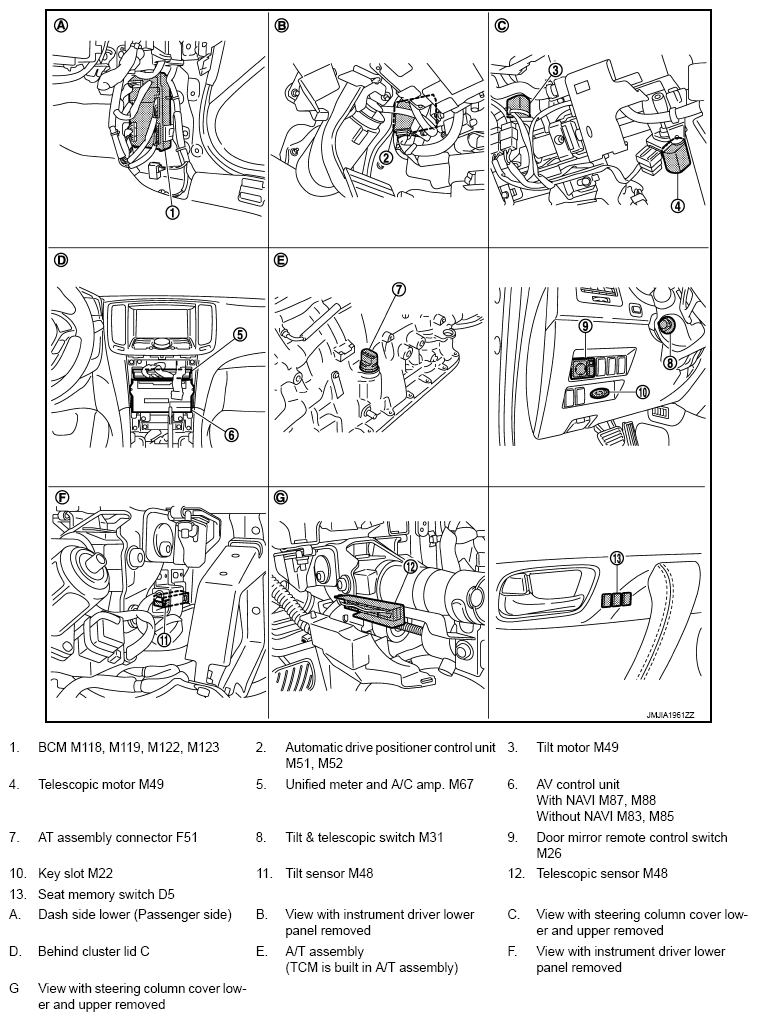

Fig 1: Exit Assist Function Components Location (1 Of 2)
G08226824Courtesy of NISSAN NORTH AMERICA, INC.

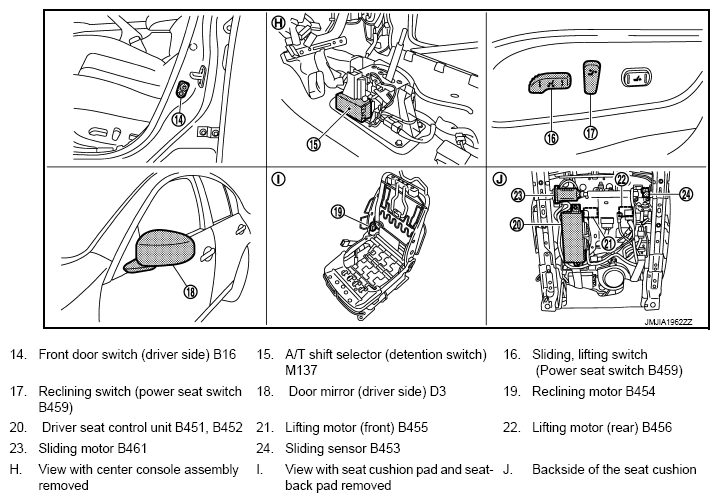

Fig 2: Exit Assist Function Components Location (2 Of 2)
G08226825Courtesy of NISSAN NORTH AMERICA, INC.
