Manual Function: Component Parts Location

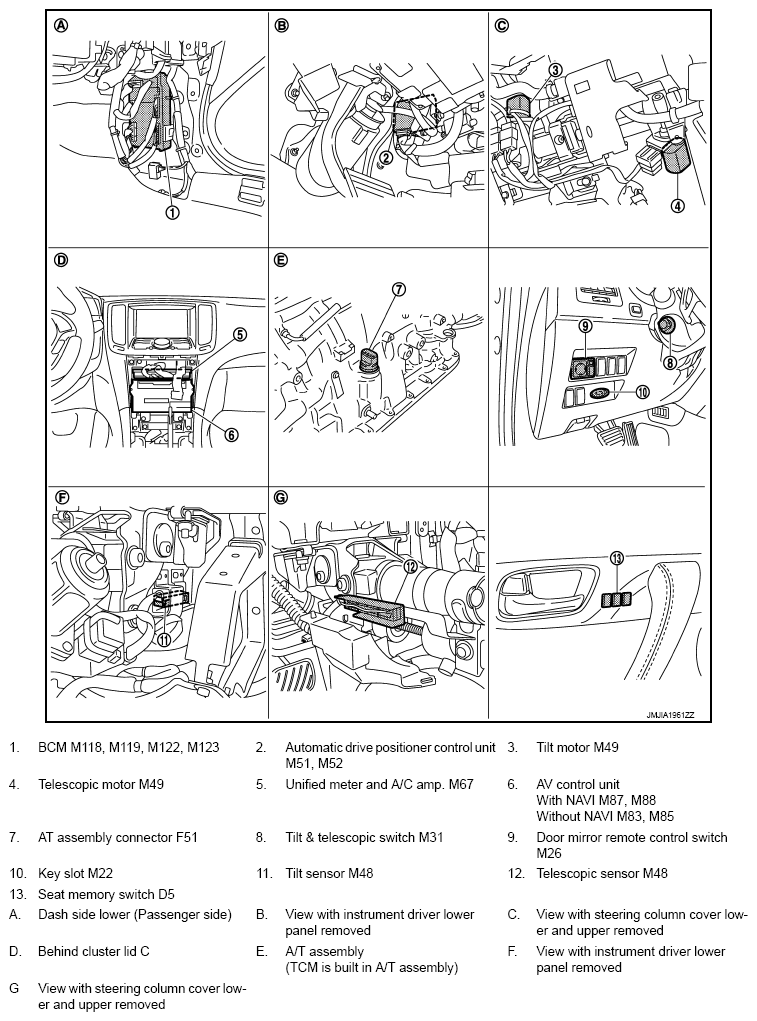

Fig 1: Manual Function Components Location (1 Of 2)
G08226815Courtesy of NISSAN NORTH AMERICA, INC.

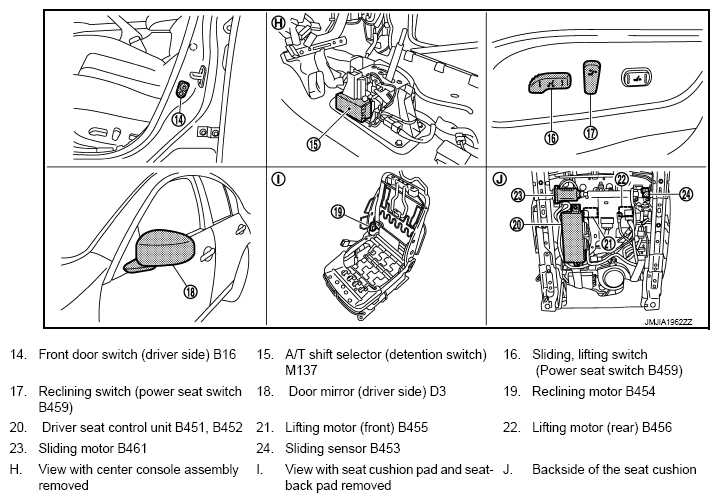

Fig 2: Manual Function Components Location (2 Of 2)
G08226816Courtesy of NISSAN NORTH AMERICA, INC.
