Seat Synchronization Function: Component Parts Location

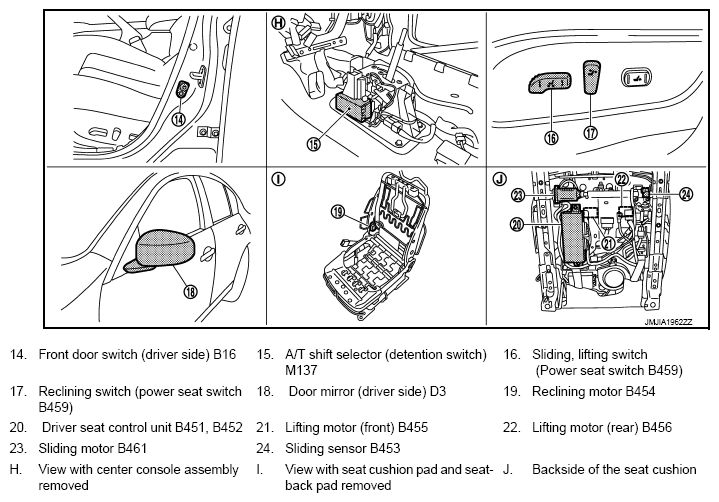

Fig 1: Seat Synchronization Function Components Location (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Seat Synchronization Function Components Location (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
