Output Speed Sensor: 2WD: Installation

Note the following, and install in the reverse order removal:

CAUTION:

Insert the tip of parking rod between the parking pole and the parking actuator support when assembling the rear extension assembly.
Never reuse drain plug gasket.

Refer to the following when installing output speed sensor:

CAUTION:

Never subject it to impact by dropping or hitting it.
Never disassemble.
Never allow metal filings, etc. to get on the sensor's front edge magnetic area.
Never place in an area affected by magnetism.

Refer to the following when installing rear extension assembly:
- Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to rear extension assembly as shown in the figure.
  Sealant starting point and end-point (A): Start and finish point shall be in the center of two bolts.

  Overlap width of sealant starting point and end-point (B): 3 - 5 mm (0.12 - 0.20 in)

  Sealant width (C): 1.0 - 2.0 mm (0.04 - 0.08 in)

  Sealant height (C): 0.4 - 1.0 mm (0.016 - 0.04 in)

  CAUTION: Completely remove all moisture, oil and old sealant, etc. from transmission case and rear extension assembly mounting surfaces.

  Fig 1: Identifying Sealant Starting Point And Endpoint, Overlap Width And Sealant Width
  Courtesy of NISSAN NORTH AMERICA, INC.
- Tighten rear extension assembly bolts to the specified torque.

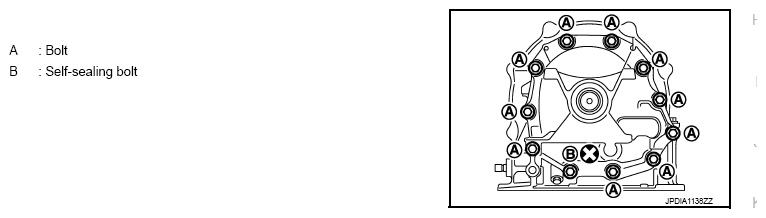

Fig 2: Identifying Rear Extension Assembly Bolts And Self-Sealing Bolt
Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
Refer to the following when installing oil pan (2) (with oil pan gasket) and clips (1) to transmission case:
CAUTION:
- Never reuse oil pan gasket and oil pan mounting bolts.
- Install oil pan gasket in the direction to align hole position.
- Install it so that drain plug comes to the position as shown in the figure.
- Be careful not to pinch harnesses.
- Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.

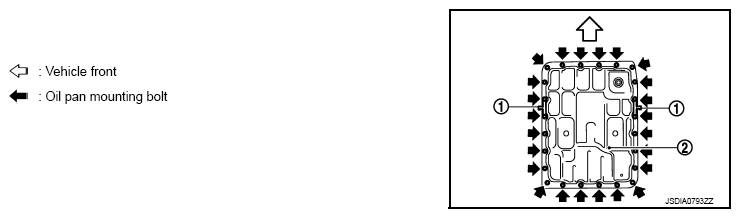

Fig 3: Locating Oil Pan Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
- Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them. Tighten necessary oil pan mounting bolts with specified torque.

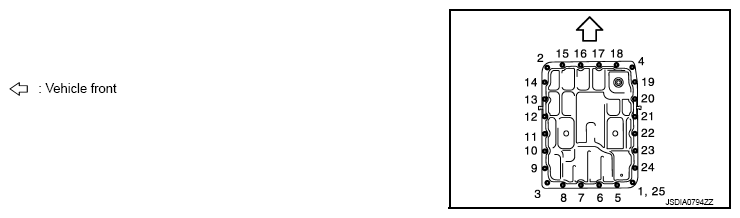

Fig 4: Identifying Oil Pan Mounting Bolts Tightening Sequence
Courtesy of NISSAN NORTH AMERICA, INC.
