Direct Clutch: Assembly

Install direct clutch component part (drive plates, driven plates, retaining plate and dish plate) to direct clutch drum.
CAUTION: Check the order of plates.

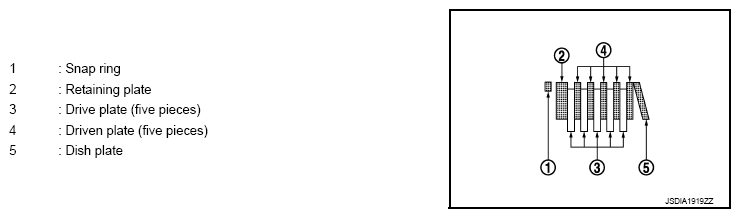

Fig 1: Identifying Direct Clutch Components (Drive Plates, Driven Plates, Retaining Plate And Dish Plate)
Courtesy of NISSAN NORTH AMERICA, INC.
Install snap rings to direct clutch drum using a flat-bladed screw-I driver.
CAUTION:
- Be careful not to scratch direct clutch drum and direct clutch retaining plate.
- Be careful not to damage snap ring.
Fig 2: Removing/Installing High And Low Reverse Clutch Drum Snap Ring Using Flat-Bladed Screwdriver
Courtesy of NISSAN NORTH AMERICA, INC.
