Repair and Diagnosis (Single Page)
>>
Body & Frame
>>
Windows
>>
Glass & Window System
>>
Front Door Glass
>>
Exploded View
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View: Notes

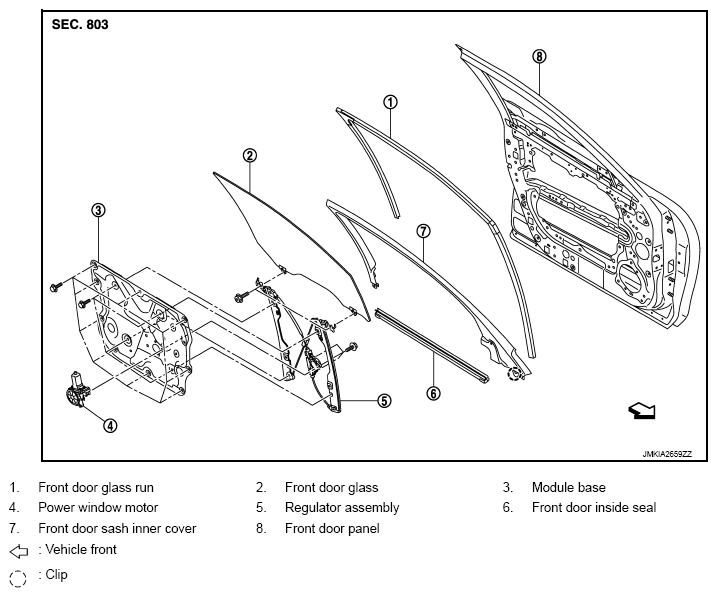

Fig 1: Exploded View Of Front Door Glass
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
