Exploded View

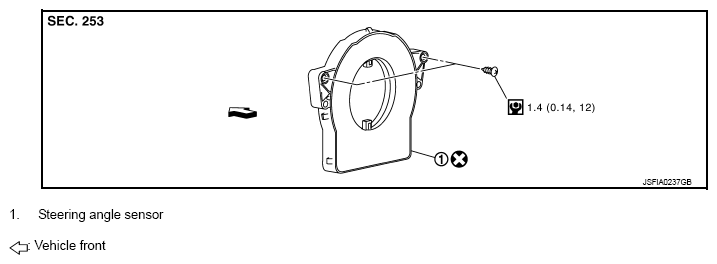

Fig 1: Steering Angle Sensor With Torque Specifications
G08218078Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
