Component Parts Location

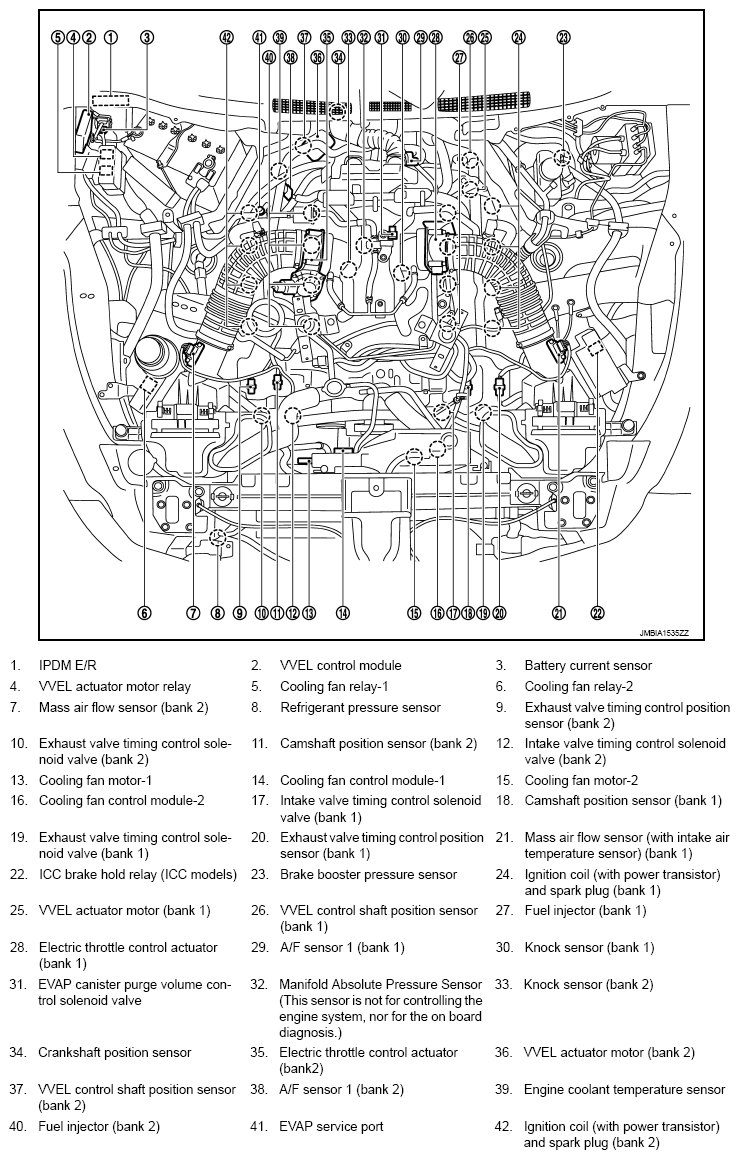

Fig 1: Engine Control System Components Location (1 Of 25)

G08210477

Courtesy of NISSAN NORTH AMERICA, INC.

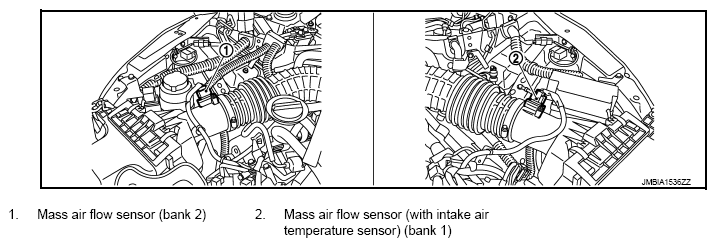

Fig 2: Engine Control System Components Location (2 Of 25)

G08210478

Courtesy of NISSAN NORTH AMERICA, INC.

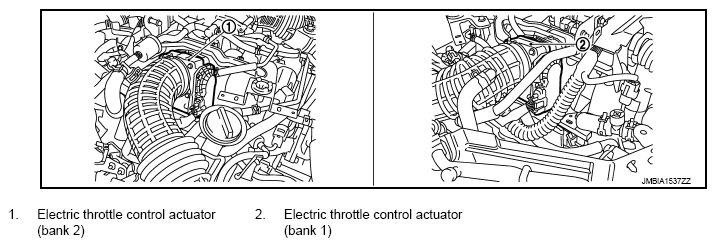

Fig 3: Engine Control System Components Location (3 Of 25)

G08210479

Courtesy of NISSAN NORTH AMERICA, INC.

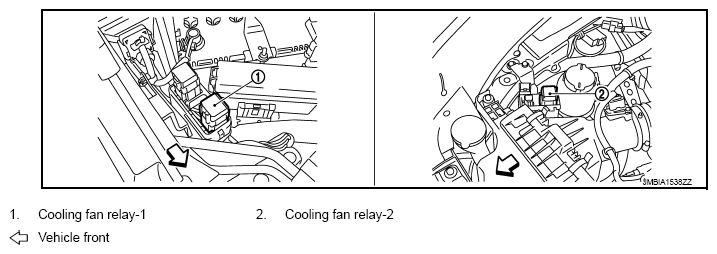

Fig 4: Engine Control System Components Location (4 Of 25)

G08210480

Courtesy of NISSAN NORTH AMERICA, INC.

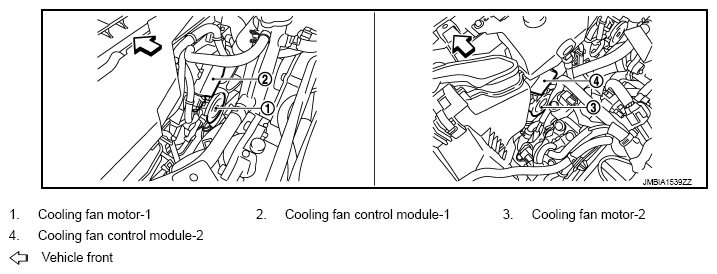

Fig 5: Engine Control System Components Location (5 Of 25)

G08210481

Courtesy of NISSAN NORTH AMERICA, INC.

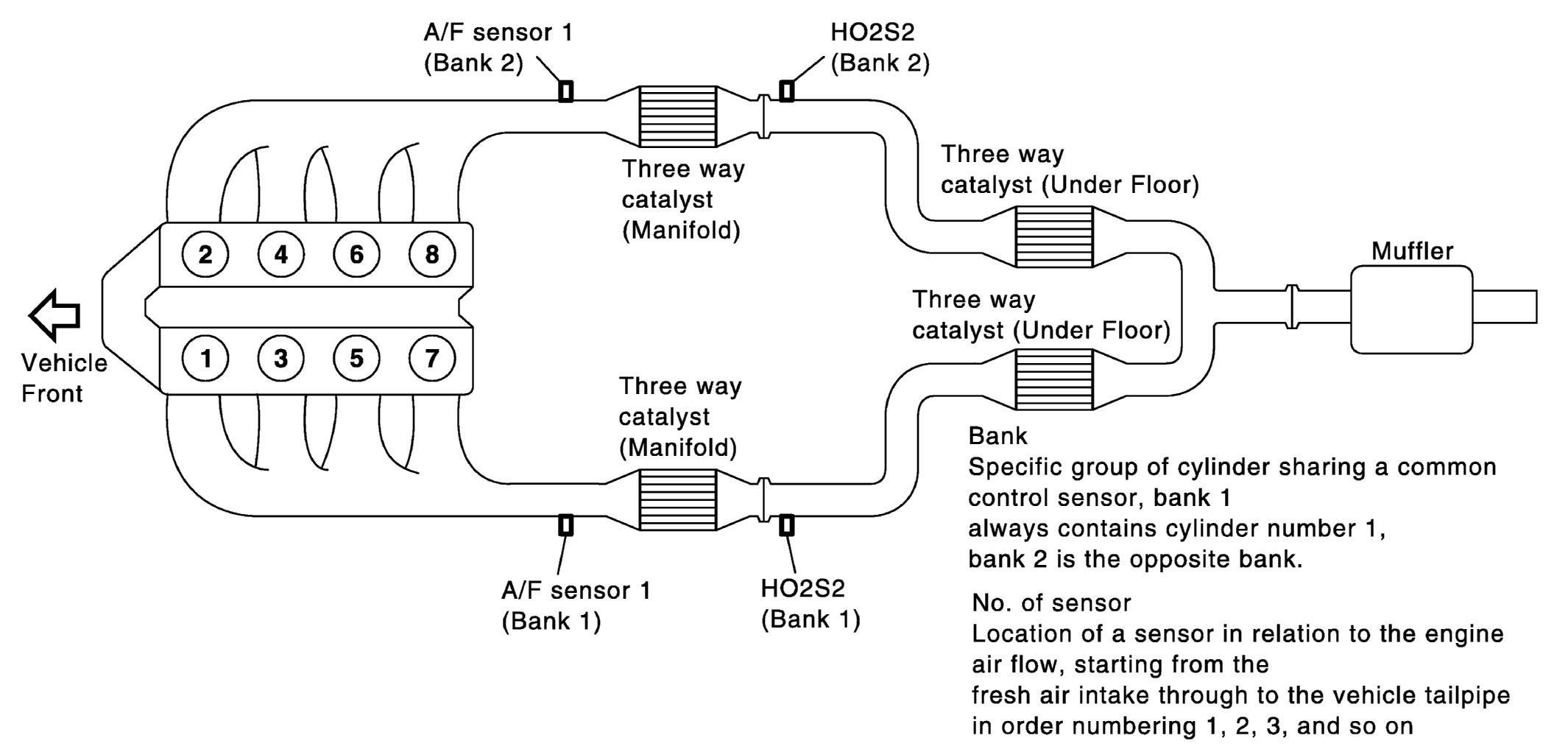

Fig 6: Engine Control System Components Location (6 Of 25)

G07227270

Courtesy of NISSAN NORTH AMERICA, INC.

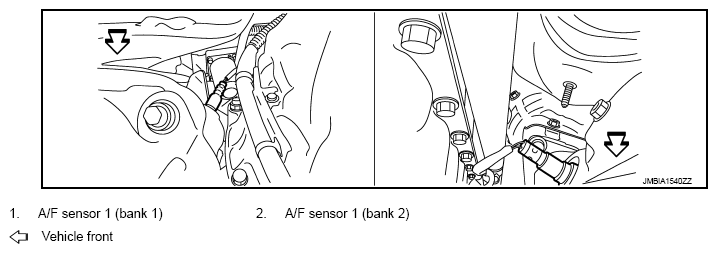

Fig 7: Engine Control System Components Location (7 Of 25)

G08210483

Courtesy of NISSAN NORTH AMERICA, INC.

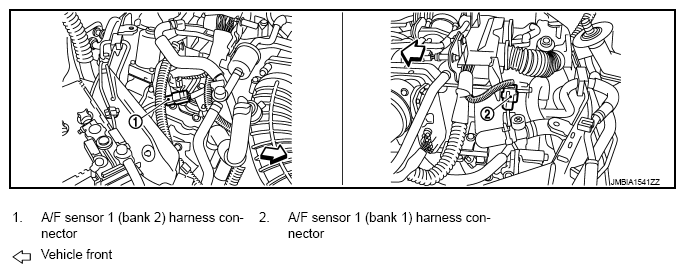

Fig 8: Engine Control System Components Location (8 Of 25)

G08210484

Courtesy of NISSAN NORTH AMERICA, INC.

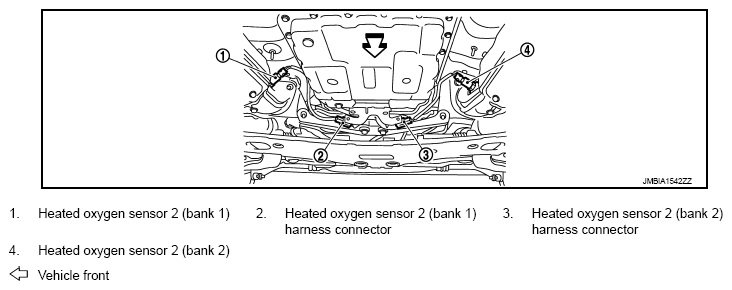

Fig 9: Engine Control System Components Location (9 Of 25)

G08210485

Courtesy of NISSAN NORTH AMERICA, INC.

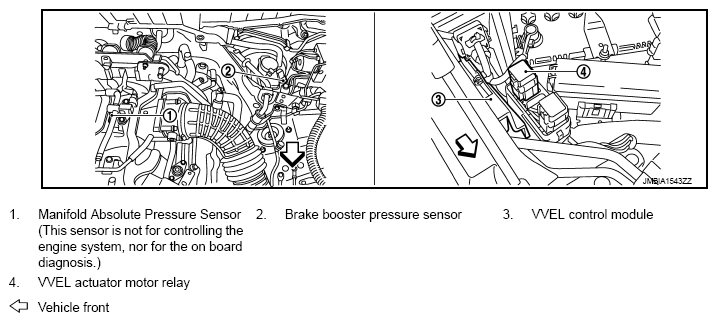

Fig 10: Engine Control System Components Location (10 Of 25)

G08210486

Courtesy of NISSAN NORTH AMERICA, INC.

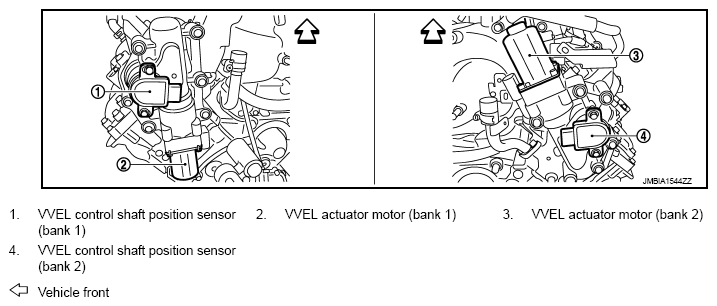

Fig 11: Engine Control System Components Location (11 Of 25)

G08210487

Courtesy of NISSAN NORTH AMERICA, INC.

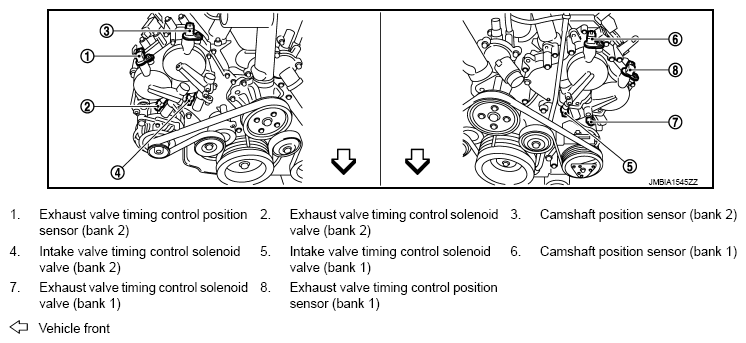

Fig 12: Engine Control System Components Location (12 Of 25)

G08210488

Courtesy of NISSAN NORTH AMERICA, INC.

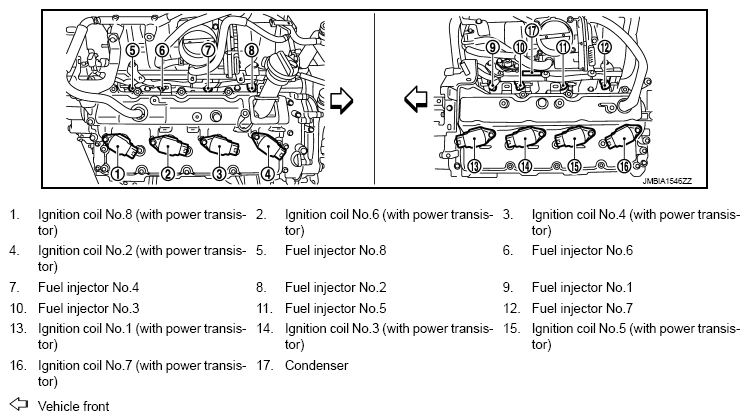

Fig 13: Engine Control System Components Location (13 Of 25)

G08210489

Courtesy of NISSAN NORTH AMERICA, INC.

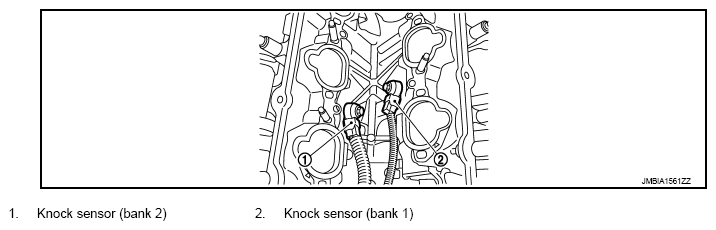

Fig 14: Engine Control System Components Location (14 Of 25)

G08210490

Courtesy of NISSAN NORTH AMERICA, INC.

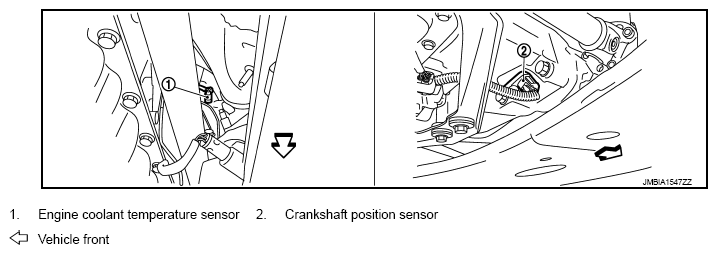

Fig 15: Engine Control System Components Location (15 Of 25)

G08210491

Courtesy of NISSAN NORTH AMERICA, INC.

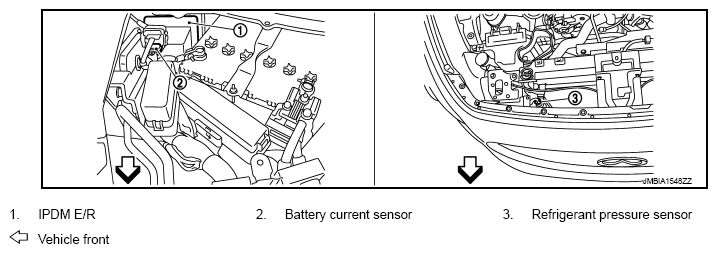

Fig 16: Engine Control System Components Location (16 Of 25)

G08210492

Courtesy of NISSAN NORTH AMERICA, INC.

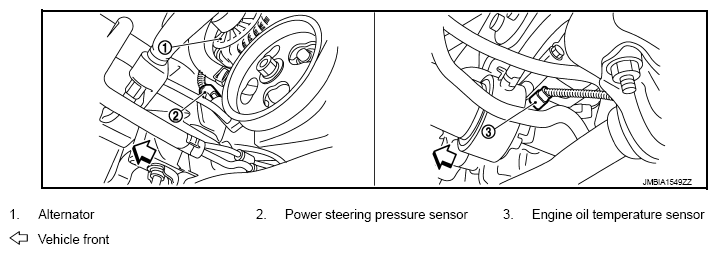

Fig 17: Engine Control System Components Location (17 Of 25)

G08210493

Courtesy of NISSAN NORTH AMERICA, INC.

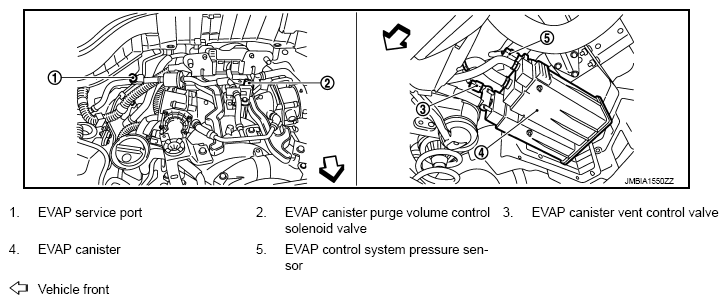

Fig 18: Engine Control System Components Location (18 Of 25)

G08210494

Courtesy of NISSAN NORTH AMERICA, INC.

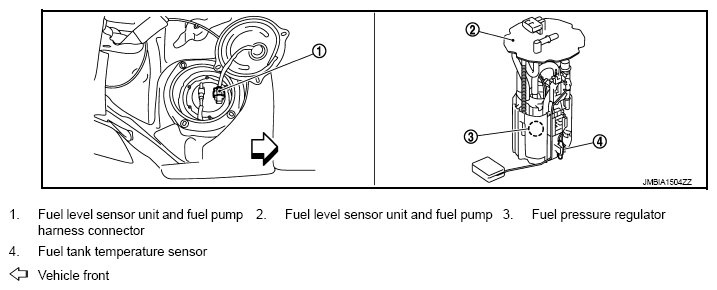

Fig 19: Engine Control System Components Location (19 Of 25)

G08210495

Courtesy of NISSAN NORTH AMERICA, INC.

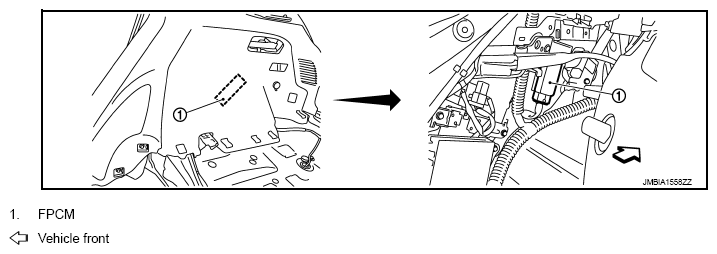

Fig 20: Engine Control System Components Location (20 Of 25)

G08210496

Courtesy of NISSAN NORTH AMERICA, INC.

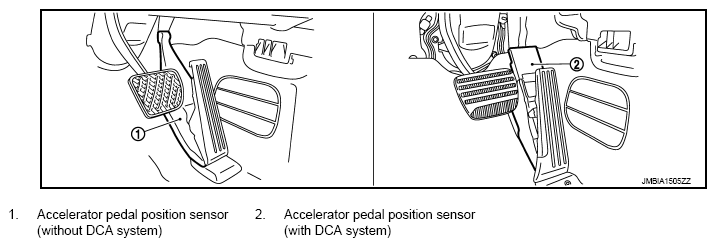

Fig 21: Engine Control System Components Location (21 Of 25)

G08210497

Courtesy of NISSAN NORTH AMERICA, INC.

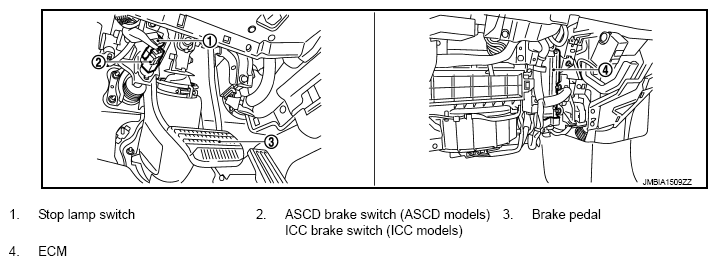

Fig 22: Engine Control System Components Location (22 Of 25)

G08210498

Courtesy of NISSAN NORTH AMERICA, INC.

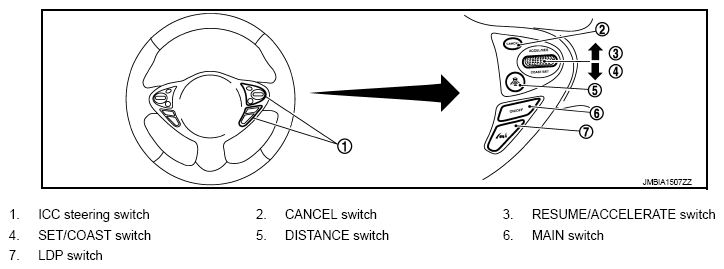

Fig 23: Engine Control System Components Location (23 Of 25)

G08210499

Courtesy of NISSAN NORTH AMERICA, INC.

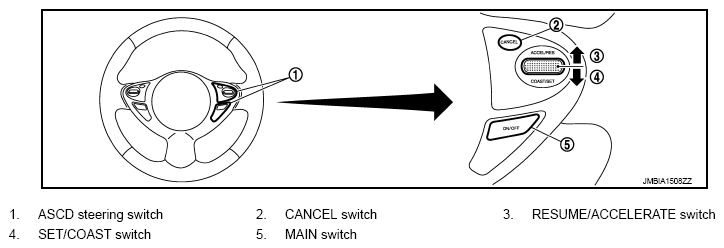

Fig 24: Engine Control System Components Location (24 Of 25)

G08210500

Courtesy of NISSAN NORTH AMERICA, INC.

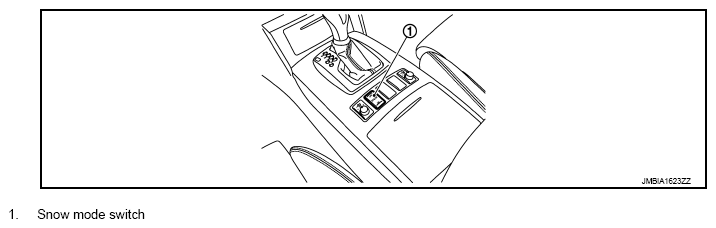

Fig 25: Engine Control System Components Location (25 Of 25)

G08210501

Courtesy of NISSAN NORTH AMERICA, INC.
