Exploded View

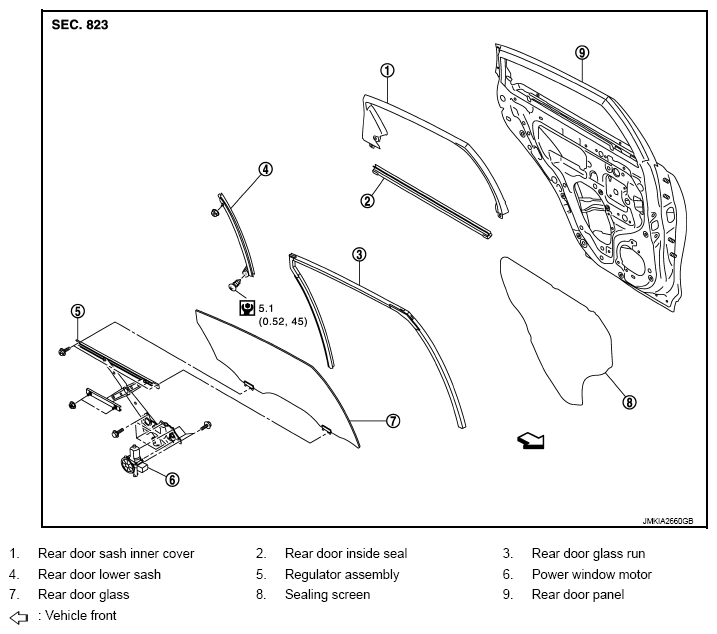

Fig 1: Exploded View Of Rear Regulator With Torque Specifications
G08227307Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for the symbols in the figure.
