Component Parts Location

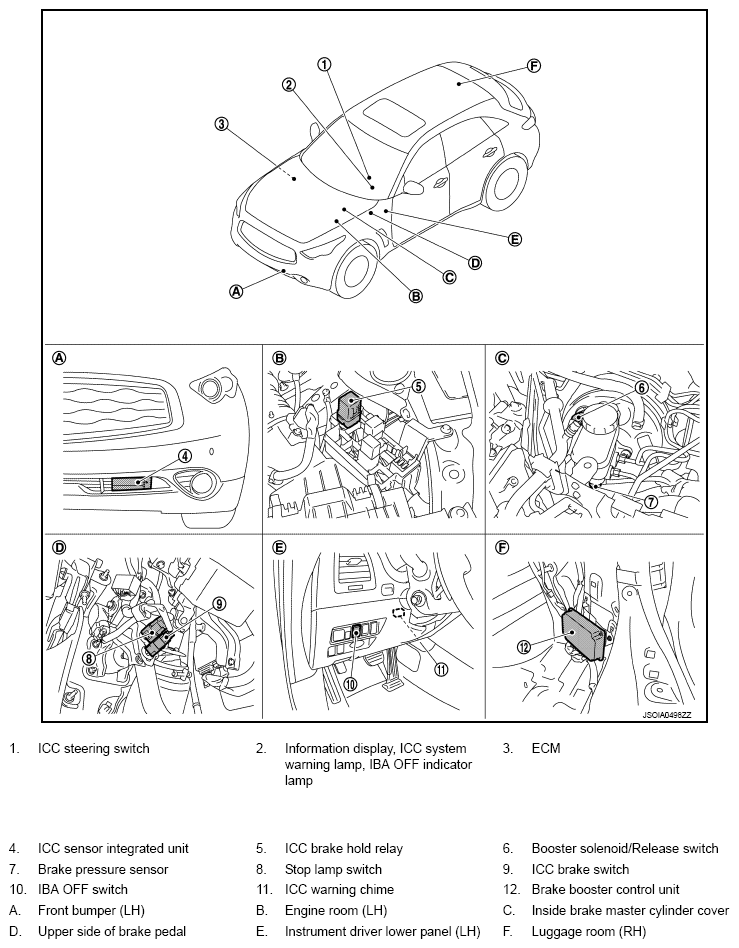

Fig 1: Intelligent Brake Assist Components Location
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
