Component Parts Location

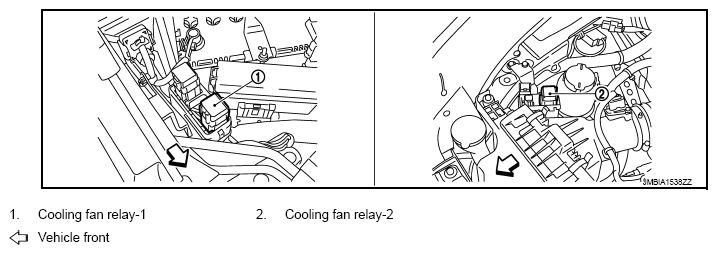

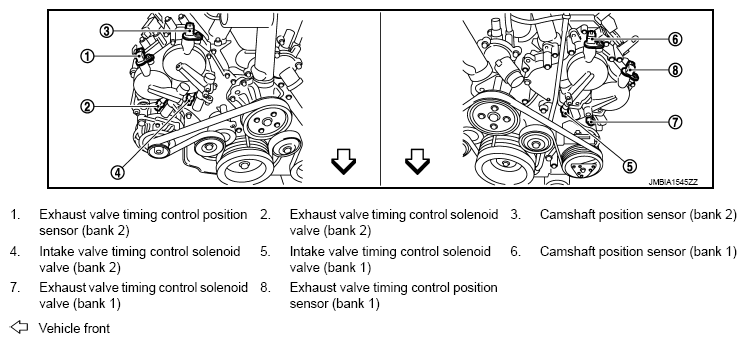

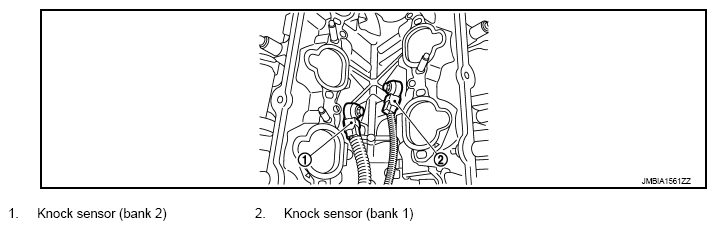

Fig 1: Air Conditioning Cut Control Components Location (1 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.

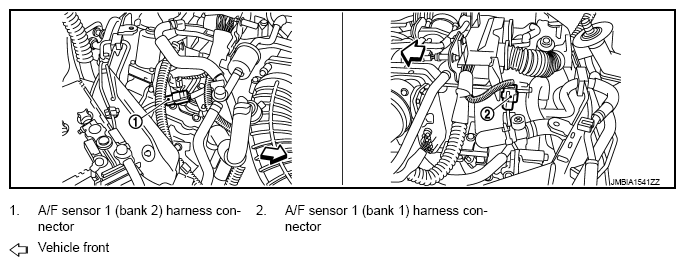

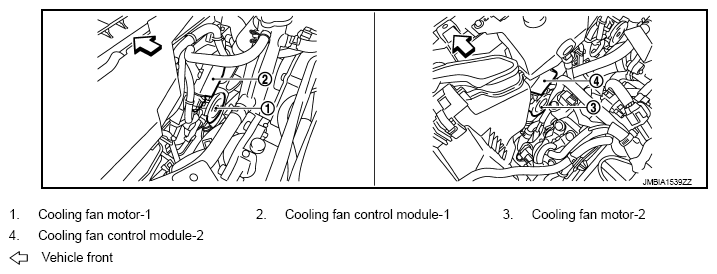

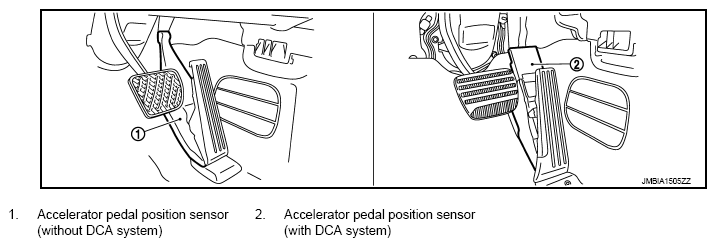

Fig 2: Air Conditioning Cut Control Components Location (2 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.

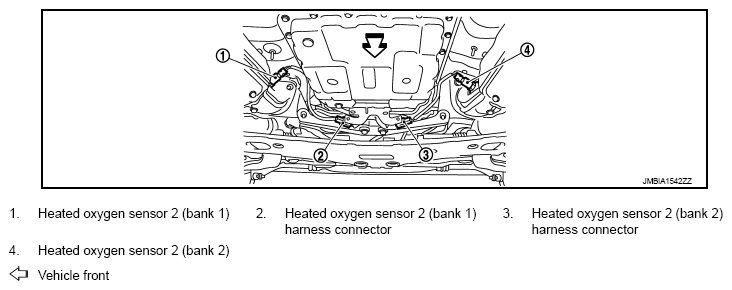

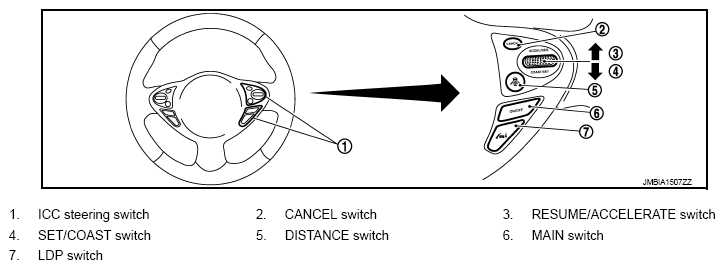

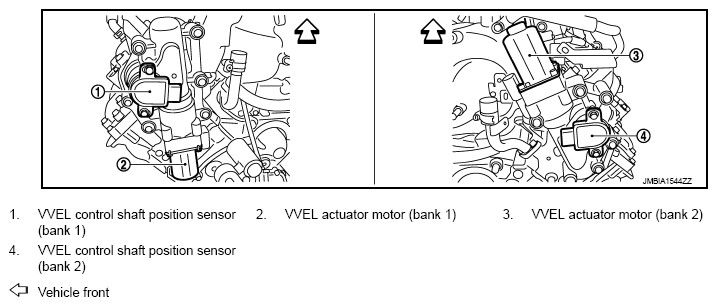

Fig 3: Air Conditioning Cut Control Components Location (3 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.

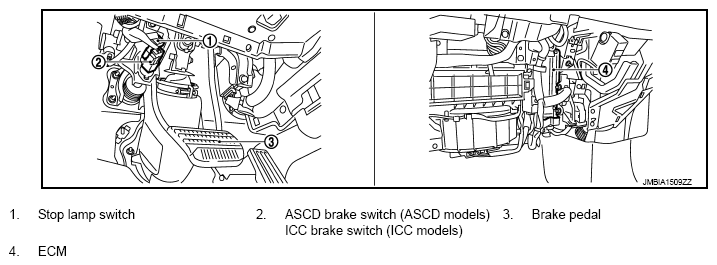

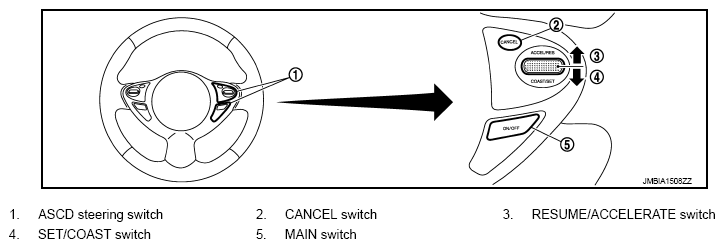

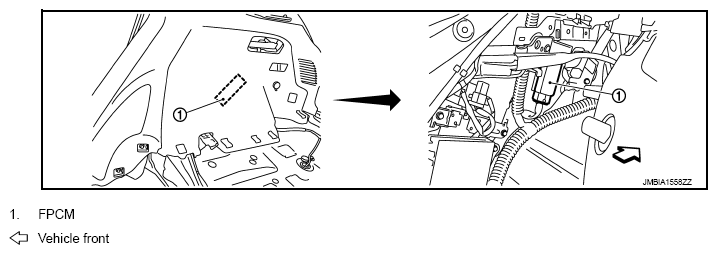

Fig 4: Air Conditioning Cut Control Components Location (4 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.

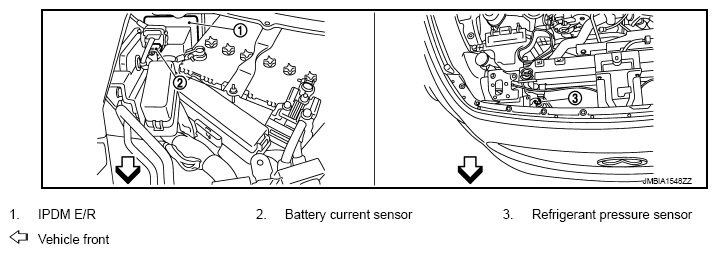

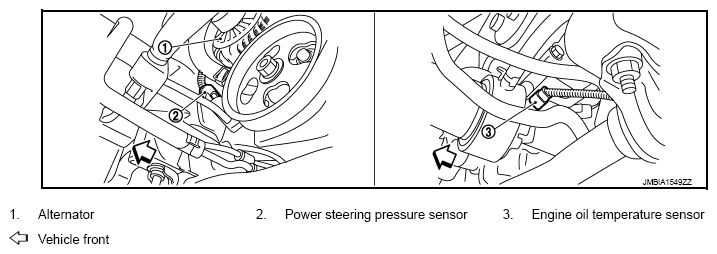

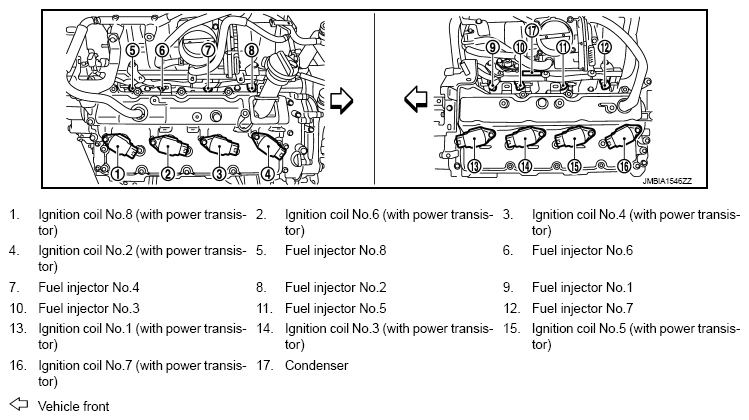

Fig 5: Air Conditioning Cut Control Components Location (5 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.

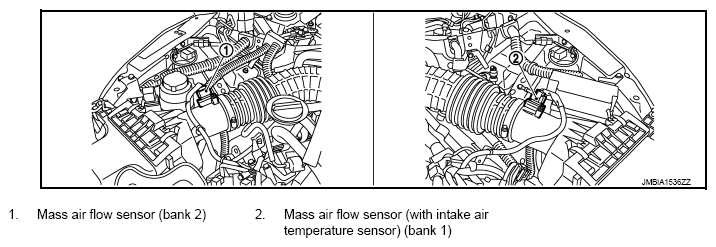

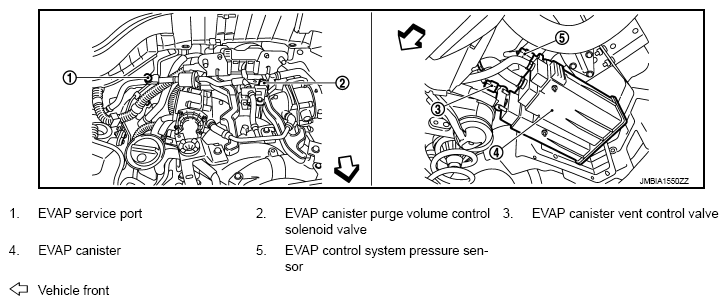

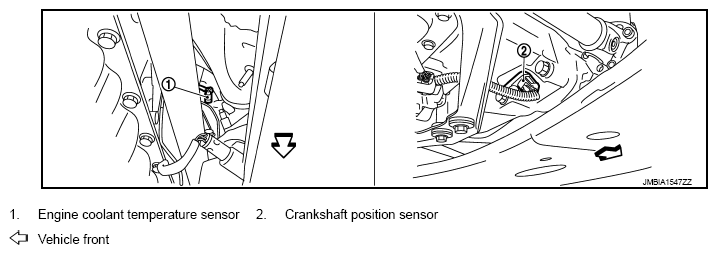

Fig 6: Air Conditioning Cut Control Components Location (6 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.

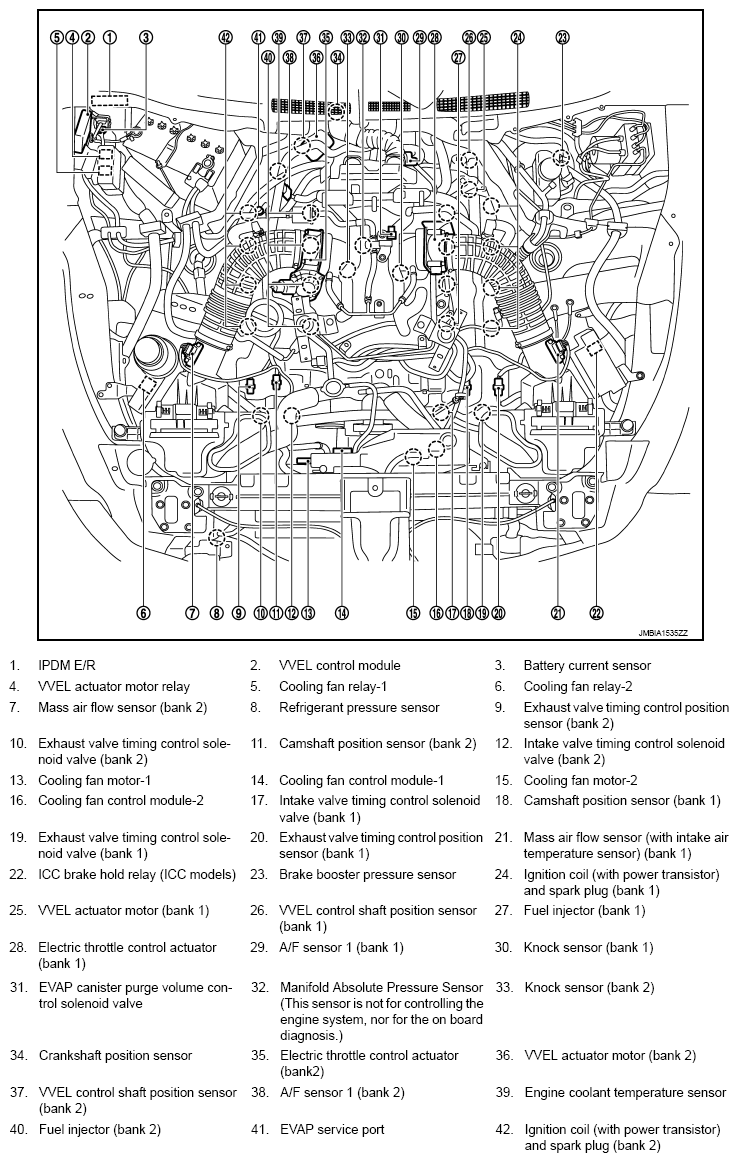

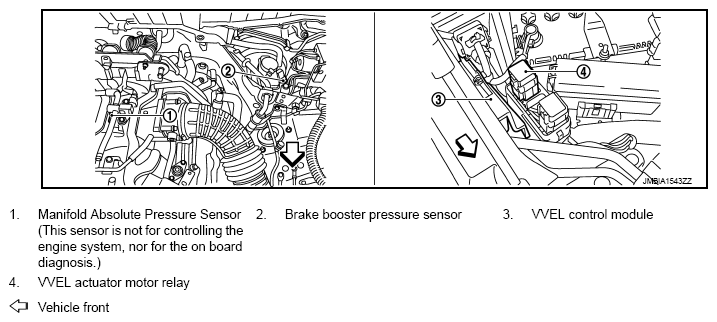

Fig 7: Air Conditioning Cut Control Components Location (7 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.

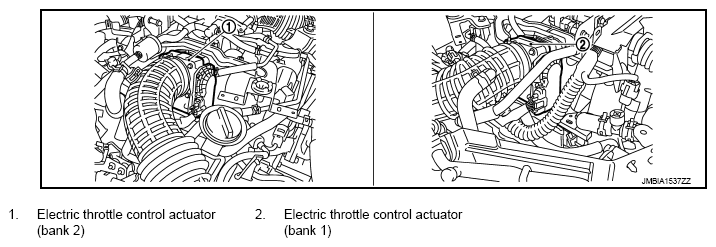

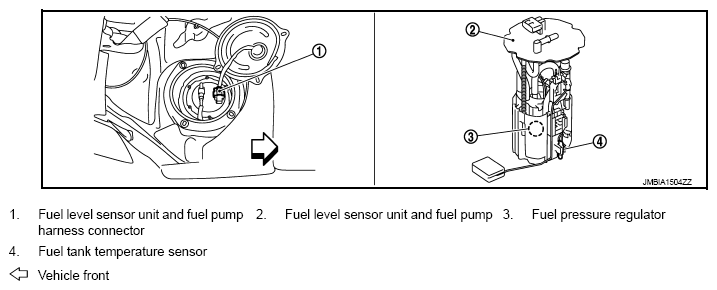

Fig 8: Air Conditioning Cut Control Components Location (8 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.

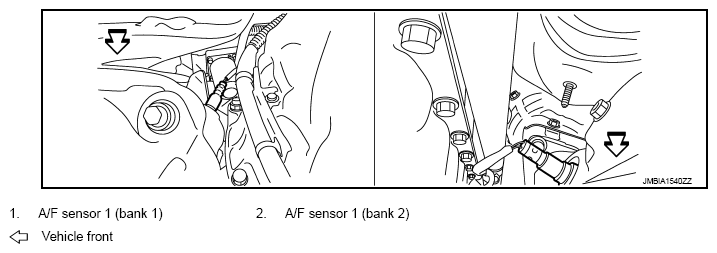

Fig 9: Air Conditioning Cut Control Components Location (9 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 10: Air Conditioning Cut Control Components Location (10 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 11: Air Conditioning Cut Control Components Location (11 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 12: Air Conditioning Cut Control Components Location (12 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 13: Air Conditioning Cut Control Components Location (13 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 14: Air Conditioning Cut Control Components Location (14 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 15: Air Conditioning Cut Control Components Location (15 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 16: Air Conditioning Cut Control Components Location (16 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 17: Air Conditioning Cut Control Components Location (17 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 18: Air Conditioning Cut Control Components Location (18 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 19: Air Conditioning Cut Control Components Location (19 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 20: Air Conditioning Cut Control Components Location (20 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 21: Air Conditioning Cut Control Components Location (21 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 22: Air Conditioning Cut Control Components Location (22 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 23: Air Conditioning Cut Control Components Location (23 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 24: Air Conditioning Cut Control Components Location (24 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 25: Air Conditioning Cut Control Components Location (25 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
