Component Parts Location

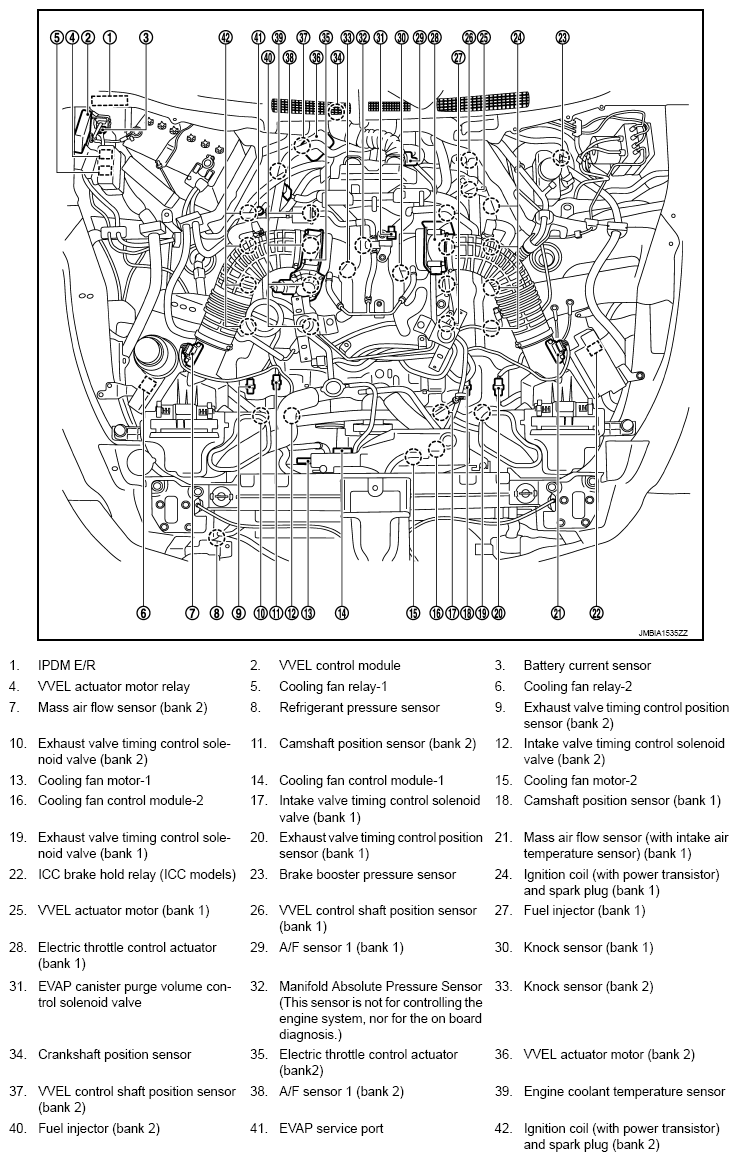

Fig 1: Automatic Speed Control Device (ASCD) Components Location (1 Of 25)

G08210583

Courtesy of NISSAN NORTH AMERICA, INC.

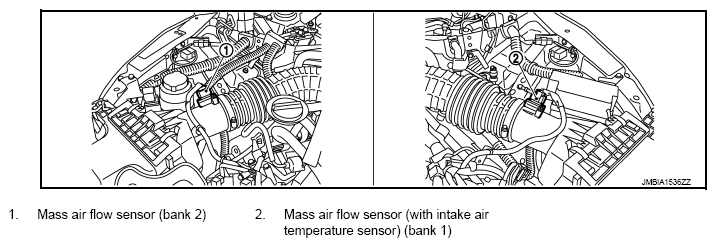

Fig 2: Automatic Speed Control Device (ASCD) Components Location (2 Of 25)

G08210584

Courtesy of NISSAN NORTH AMERICA, INC.

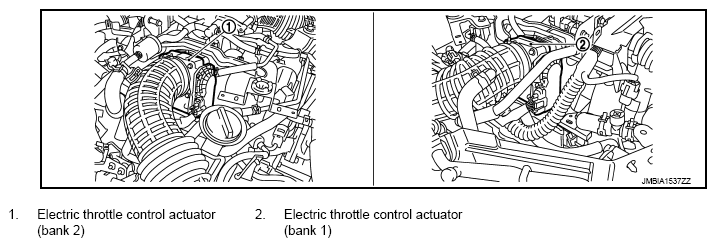

Fig 3: Automatic Speed Control Device (ASCD) Components Location (3 Of 25)

G08210585

Courtesy of NISSAN NORTH AMERICA, INC.

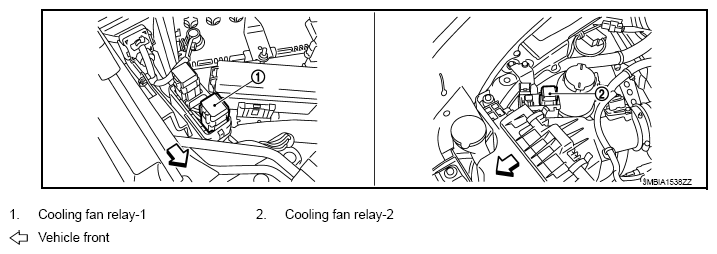

Fig 4: Automatic Speed Control Device (ASCD) Components Location (4 Of 25)

G08210586

Courtesy of NISSAN NORTH AMERICA, INC.

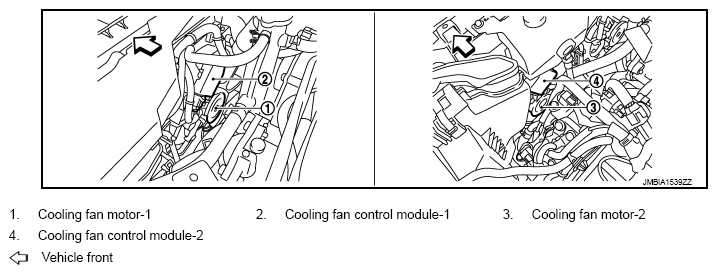

Fig 5: Automatic Speed Control Device (ASCD) Components Location (5 Of 25)

G08210587

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Automatic Speed Control Device (ASCD) Components Location (6 Of 25)

G07227270

Courtesy of NISSAN NORTH AMERICA, INC.

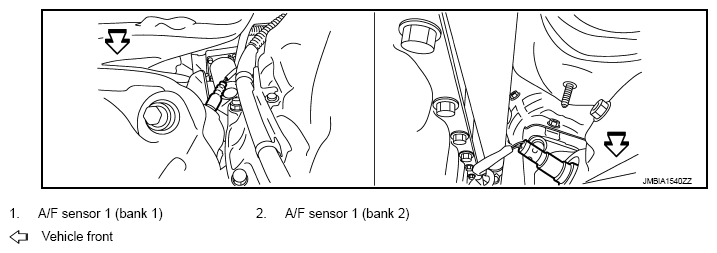

Fig 7: Automatic Speed Control Device (ASCD) Components Location (7 Of 25)

G08210588

Courtesy of NISSAN NORTH AMERICA, INC.

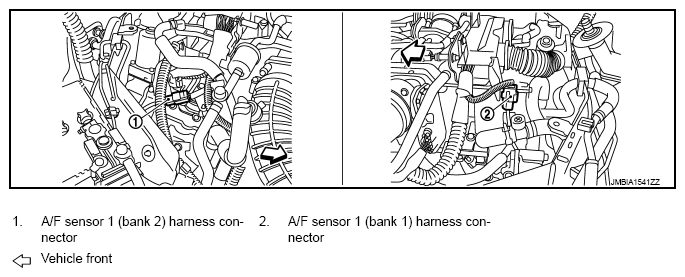

Fig 8: Automatic Speed Control Device (ASCD) Components Location (8 Of 25)

G08210590

Courtesy of NISSAN NORTH AMERICA, INC.

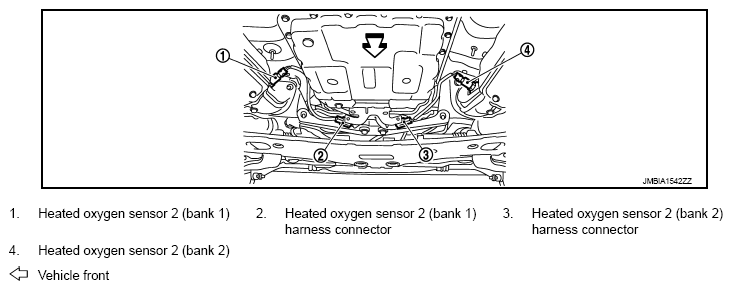

Fig 9: Automatic Speed Control Device (ASCD) Components Location (9 Of 25)

G08210591

Courtesy of NISSAN NORTH AMERICA, INC.

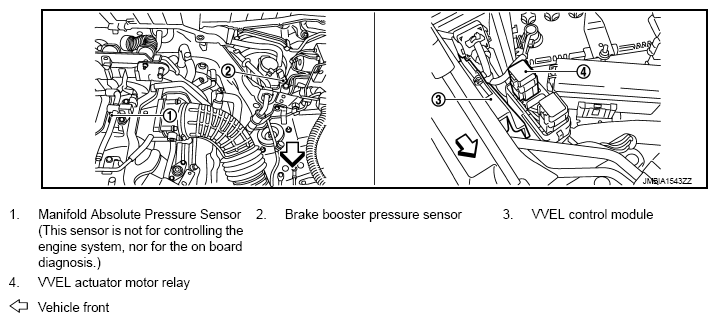

Fig 10: Automatic Speed Control Device (ASCD) Components Location (10 Of 25)

G08210592

Courtesy of NISSAN NORTH AMERICA, INC.

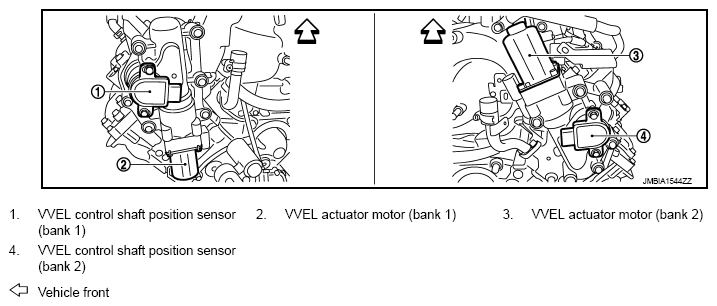

Fig 11: Automatic Speed Control Device (ASCD) Components Location (11 Of 25)

G08210593

Courtesy of NISSAN NORTH AMERICA, INC.

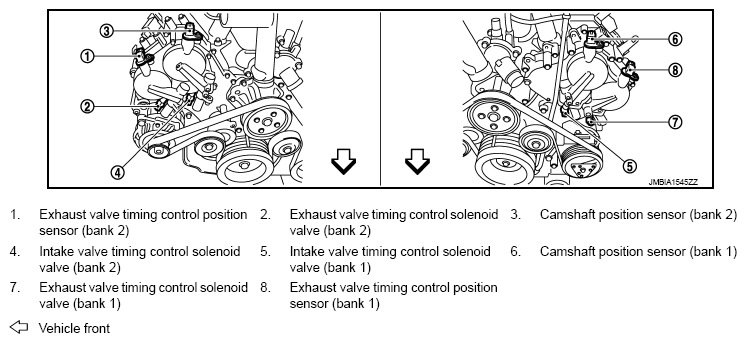

Fig 12: Automatic Speed Control Device (ASCD) Components Location (12 Of 25)

G08210594

Courtesy of NISSAN NORTH AMERICA, INC.

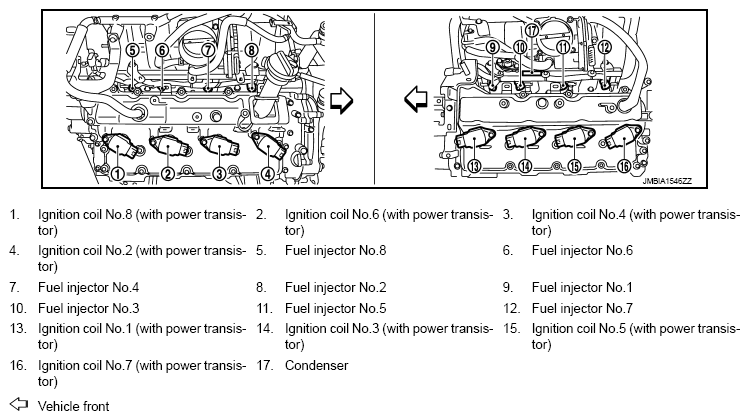

Fig 13: Automatic Speed Control Device (ASCD) Components Location (13 Of 25)

G08210595

Courtesy of NISSAN NORTH AMERICA, INC.

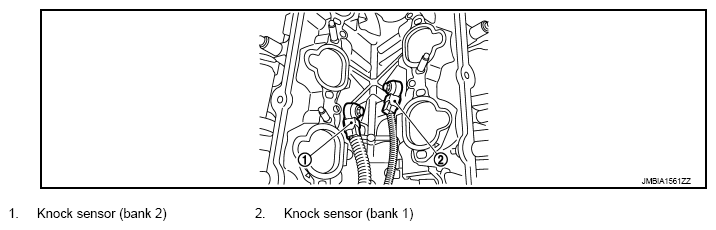

Fig 14: Automatic Speed Control Device (ASCD) Components Location (14 Of 25)

G08210596

Courtesy of NISSAN NORTH AMERICA, INC.

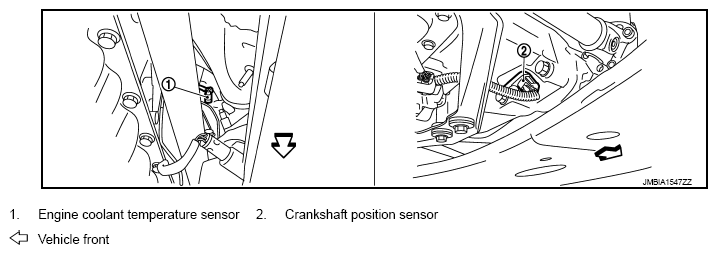

Fig 15: Automatic Speed Control Device (ASCD) Components Location (15 Of 25)

G08210597

Courtesy of NISSAN NORTH AMERICA, INC.

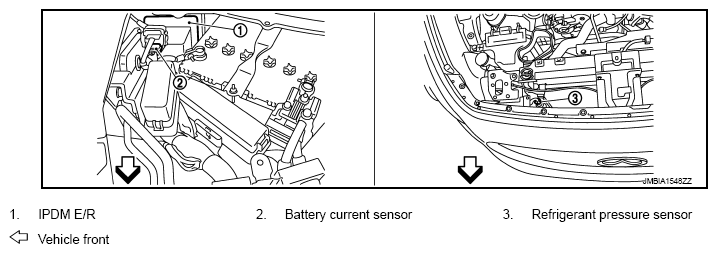

Fig 16: Automatic Speed Control Device (ASCD) Components Location (16 Of 25)

G08210598

Courtesy of NISSAN NORTH AMERICA, INC.

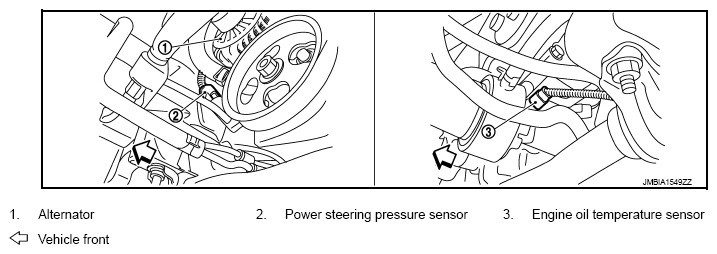

Fig 17: Automatic Speed Control Device (ASCD) Components Location (17 Of 25)

G08210599

Courtesy of NISSAN NORTH AMERICA, INC.

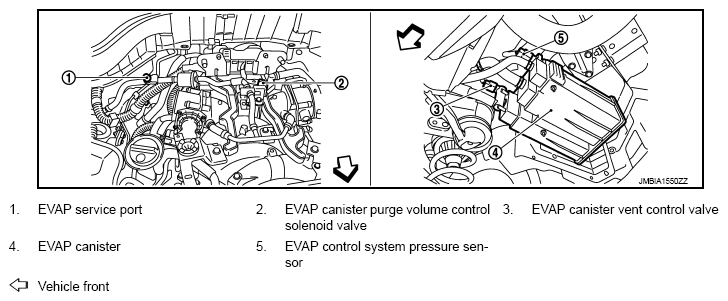

Fig 18: Automatic Speed Control Device (ASCD) Components Location (18 Of 25)

G08210600

Courtesy of NISSAN NORTH AMERICA, INC.

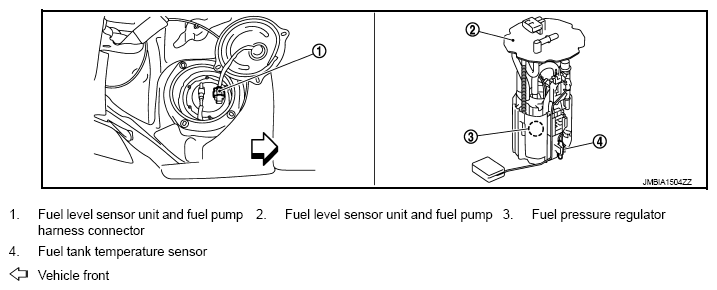

Fig 19: Automatic Speed Control Device (ASCD) Components Location (19 Of 25)

G08210601

Courtesy of NISSAN NORTH AMERICA, INC.

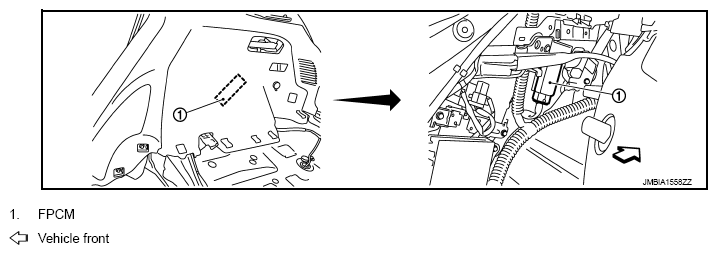

Fig 20: Automatic Speed Control Device (ASCD) Components Location (20 Of 25)

G08210602

Courtesy of NISSAN NORTH AMERICA, INC.

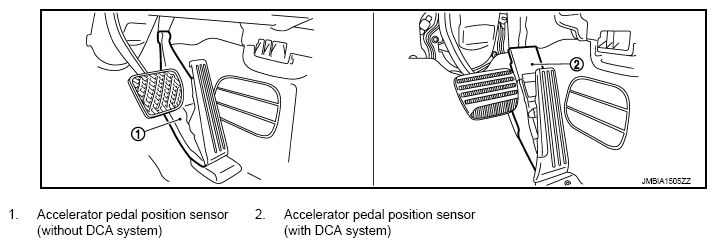

Fig 21: Automatic Speed Control Device (ASCD) Components Location (21 Of 25)

G08210603

Courtesy of NISSAN NORTH AMERICA, INC.

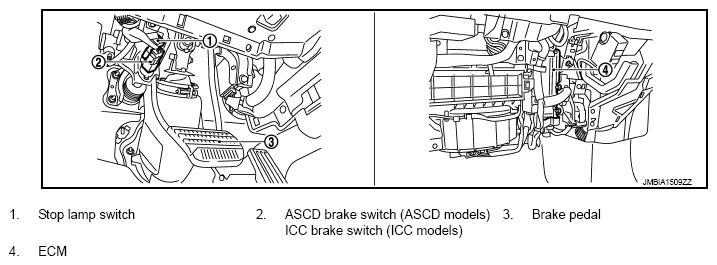

Fig 22: Automatic Speed Control Device (ASCD) Components Location (22 Of 25)

G08210604

Courtesy of NISSAN NORTH AMERICA, INC.

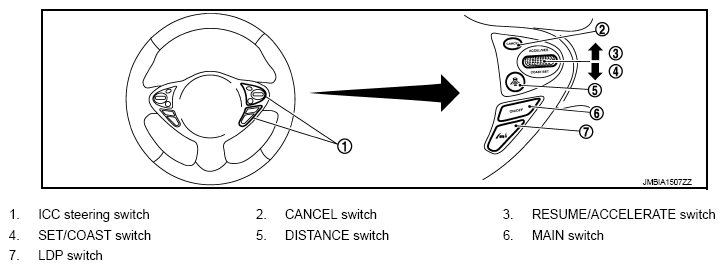

Fig 23: Automatic Speed Control Device (ASCD) Components Location (23 Of 25)

G08210605

Courtesy of NISSAN NORTH AMERICA, INC.

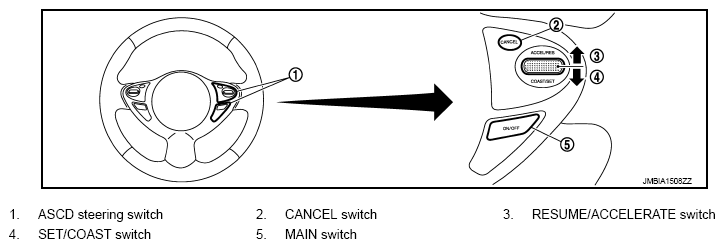

Fig 24: Automatic Speed Control Device (ASCD) Components Location (24 Of 25)

G08210606

Courtesy of NISSAN NORTH AMERICA, INC.

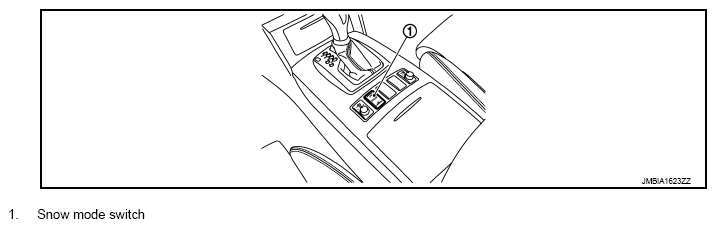

Fig 25: Automatic Speed Control Device (ASCD) Components Location (25 Of 25)

G08210607

Courtesy of NISSAN NORTH AMERICA, INC.
