Component Parts Location

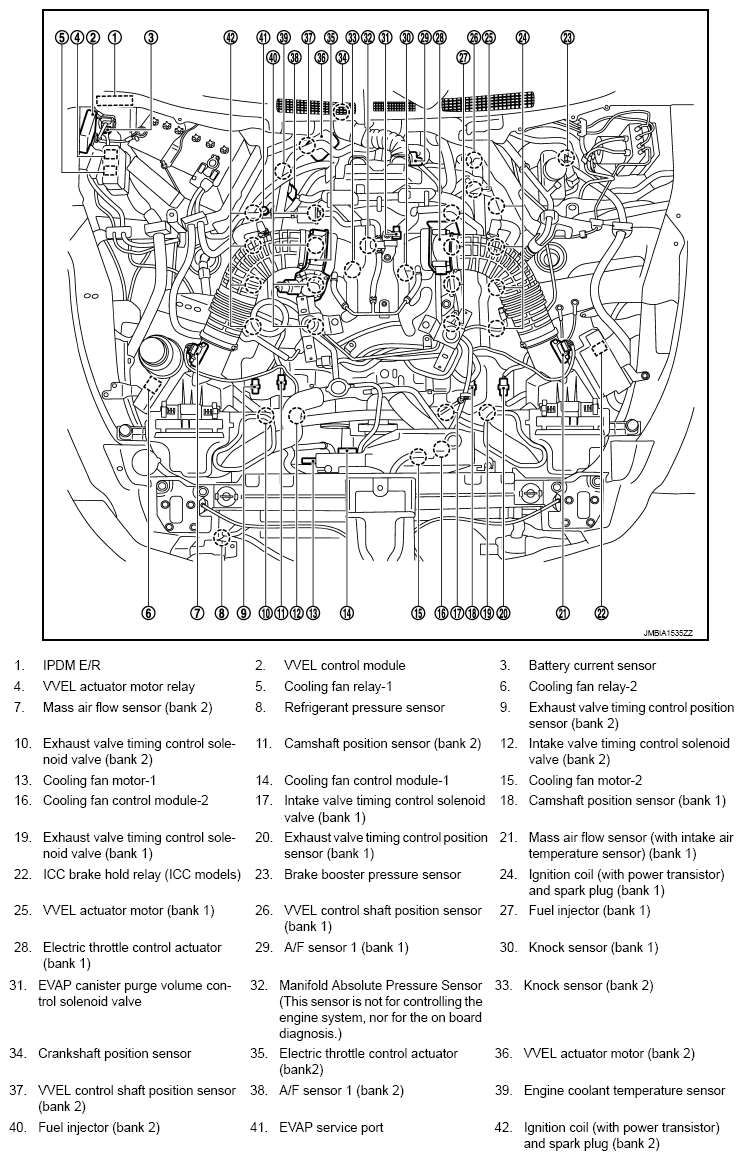

Fig 1: Intake Valve Timing Control Components Location (1 Of 25)

G08210716

Courtesy of NISSAN NORTH AMERICA, INC.

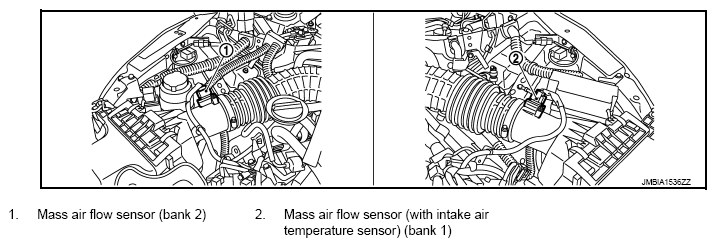

Fig 2: Intake Valve Timing Control Components Location (2 Of 25)

G08210717

Courtesy of NISSAN NORTH AMERICA, INC.

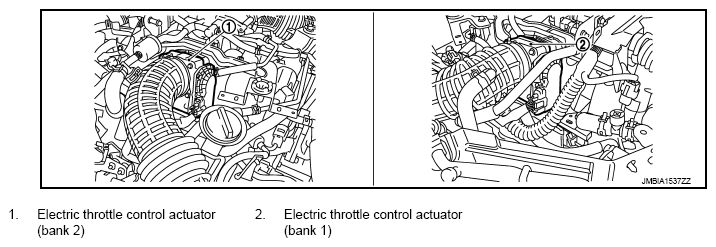

Fig 3: Intake Valve Timing Control Components Location (3 Of 25)

G08210718

Courtesy of NISSAN NORTH AMERICA, INC.

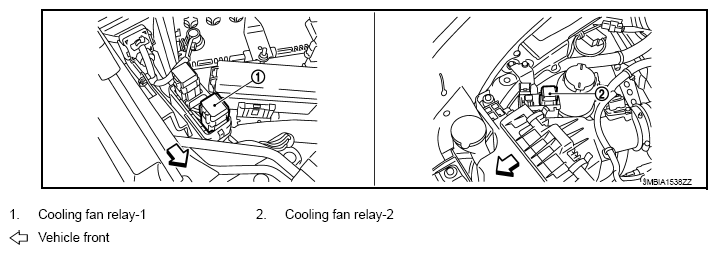

Fig 4: Intake Valve Timing Control Components Location (4 Of 25)

G08210719

Courtesy of NISSAN NORTH AMERICA, INC.

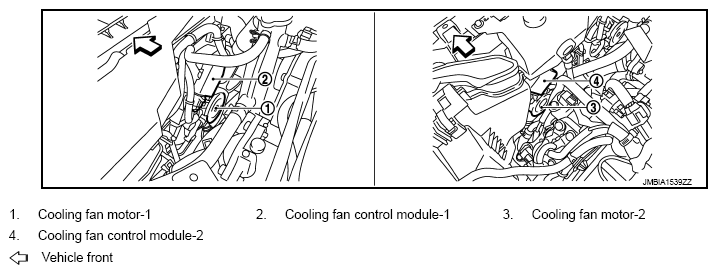

Fig 5: Intake Valve Timing Control Components Location (5 Of 25)

G08210720

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Intake Valve Timing Control Components Location (6 Of 25)

G07227270

Courtesy of NISSAN NORTH AMERICA, INC.

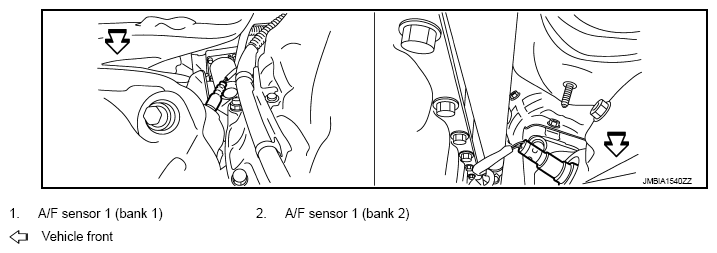

Fig 7: Intake Valve Timing Control Components Location (7 Of 25)

G08210722

Courtesy of NISSAN NORTH AMERICA, INC.

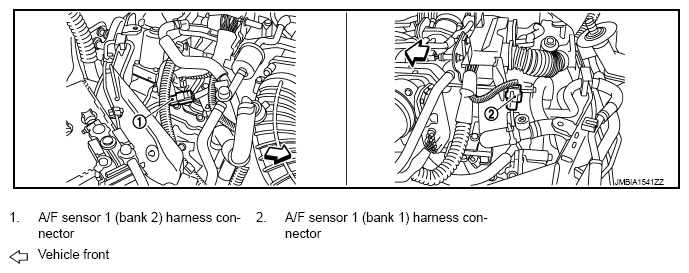

Fig 8: Intake Valve Timing Control Components Location (8 Of 25)

G08210723

Courtesy of NISSAN NORTH AMERICA, INC.

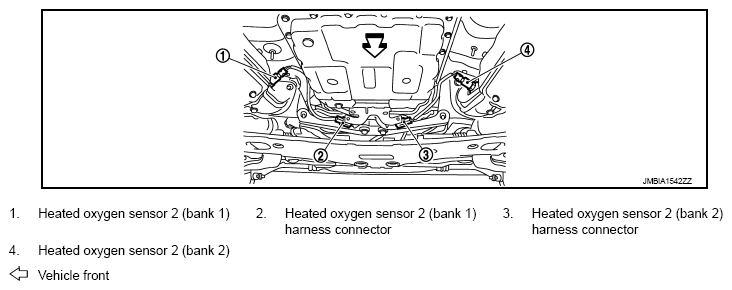

Fig 9: Intake Valve Timing Control Components Location (9 Of 25)

G08210724

Courtesy of NISSAN NORTH AMERICA, INC.

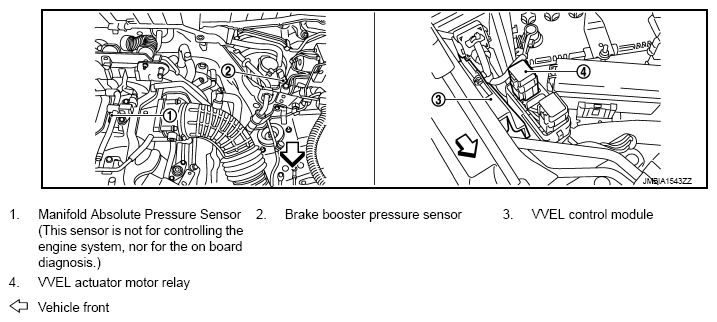

Fig 10: Intake Valve Timing Control Components Location (10 Of 25)

G08210725

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Intake Valve Timing Control Components Location (11 Of 25)

G08210726

Courtesy of NISSAN NORTH AMERICA, INC.

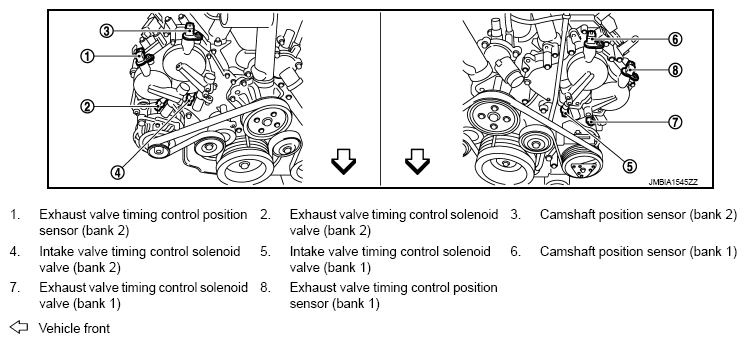

Fig 12: Intake Valve Timing Control Components Location (12 Of 25)

G08210727

Courtesy of NISSAN NORTH AMERICA, INC.

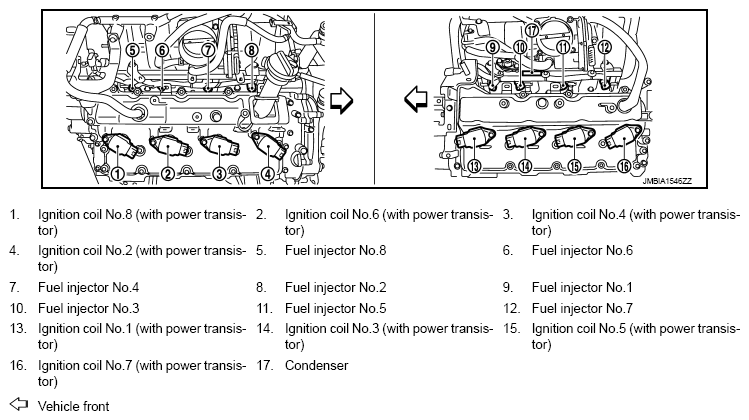

Fig 13: Intake Valve Timing Control Components Location (13 Of 25)

G08210728

Courtesy of NISSAN NORTH AMERICA, INC.

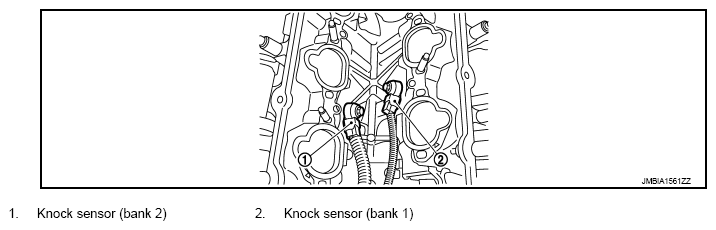

Fig 14: Intake Valve Timing Control Components Location (14 Of 25)

G08210729

Courtesy of NISSAN NORTH AMERICA, INC.

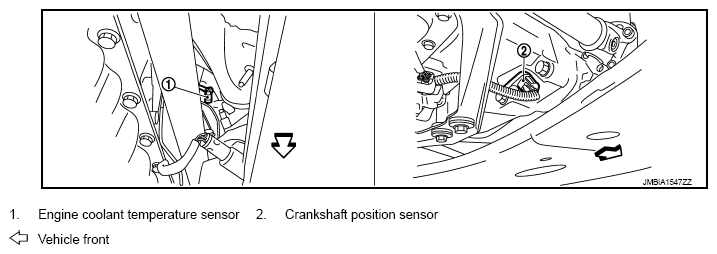

Fig 15: Intake Valve Timing Control Components Location (15 Of 25)

G08210730

Courtesy of NISSAN NORTH AMERICA, INC.

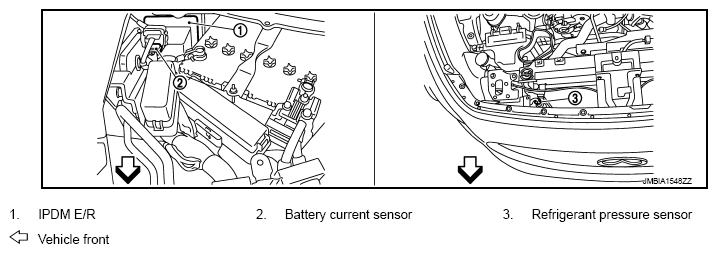

Fig 16: Intake Valve Timing Control Components Location (16 Of 25)

G08210731

Courtesy of NISSAN NORTH AMERICA, INC.

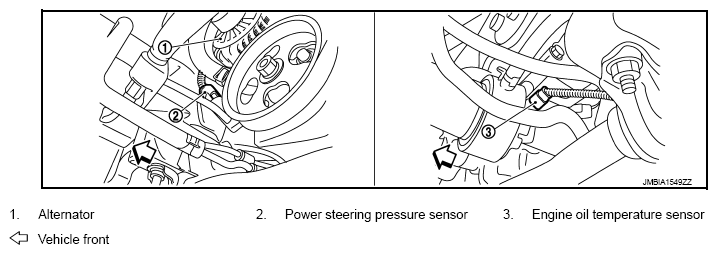

Fig 17: Intake Valve Timing Control Components Location (17 Of 25)

G08210732

Courtesy of NISSAN NORTH AMERICA, INC.

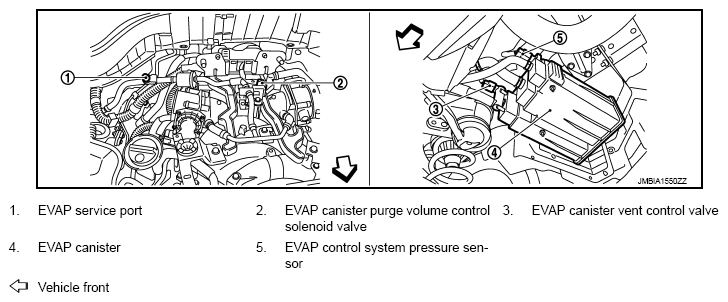

Fig 18: Intake Valve Timing Control Components Location (18 Of 25)

G08210733

Courtesy of NISSAN NORTH AMERICA, INC.

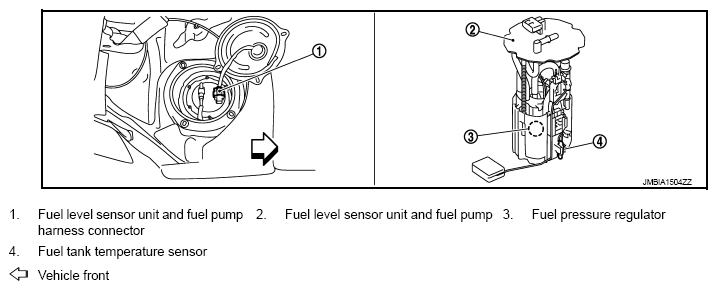

Fig 19: Intake Valve Timing Control Components Location (19 Of 25)

G08210734

Courtesy of NISSAN NORTH AMERICA, INC.

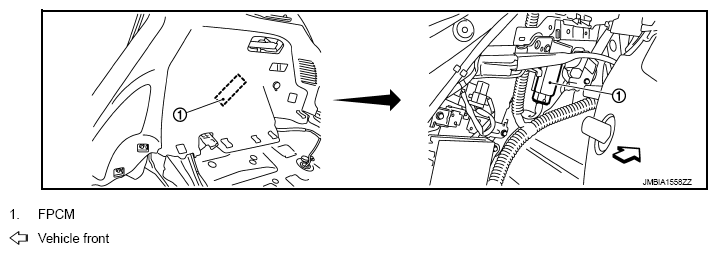

Fig 20: Intake Valve Timing Control Components Location (20 Of 25)

G08210735

Courtesy of NISSAN NORTH AMERICA, INC.

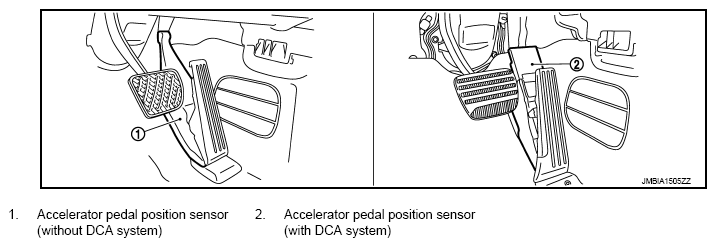

Fig 21: Intake Valve Timing Control Components Location (21 Of 25)

G08210736

Courtesy of NISSAN NORTH AMERICA, INC.

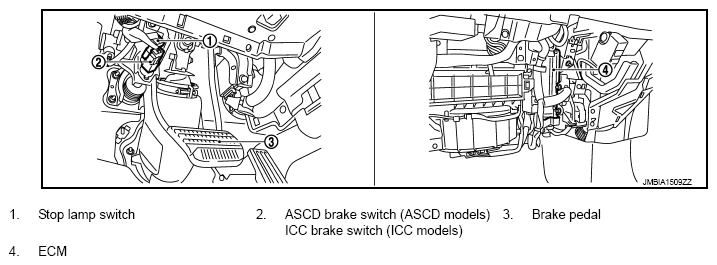

Fig 22: Intake Valve Timing Control Components Location (22 Of 25)

G08210737

Courtesy of NISSAN NORTH AMERICA, INC.

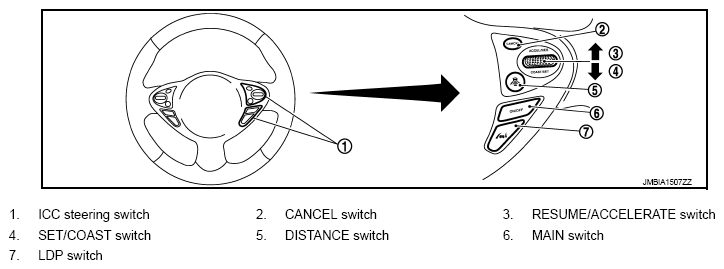

Fig 23: Intake Valve Timing Control Components Location (23 Of 25)

G08210738

Courtesy of NISSAN NORTH AMERICA, INC.

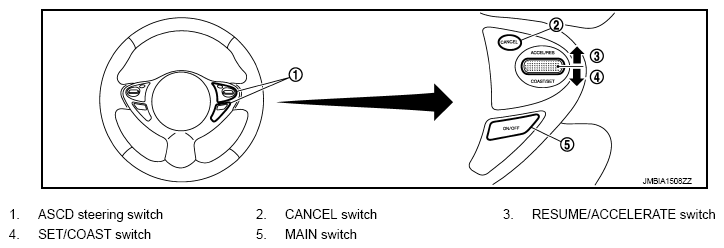

Fig 24: Intake Valve Timing Control Components Location (24 Of 25)

G08210739

Courtesy of NISSAN NORTH AMERICA, INC.

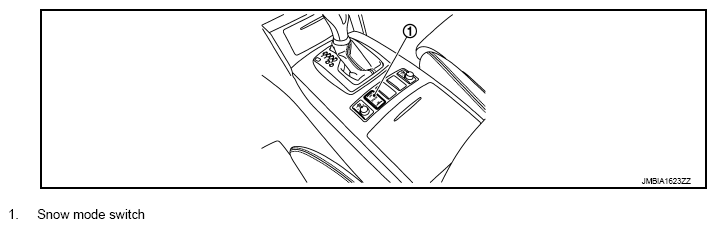

Fig 25: Intake Valve Timing Control Components Location (25 Of 25)

G08210740

Courtesy of NISSAN NORTH AMERICA, INC.
