Exploded View

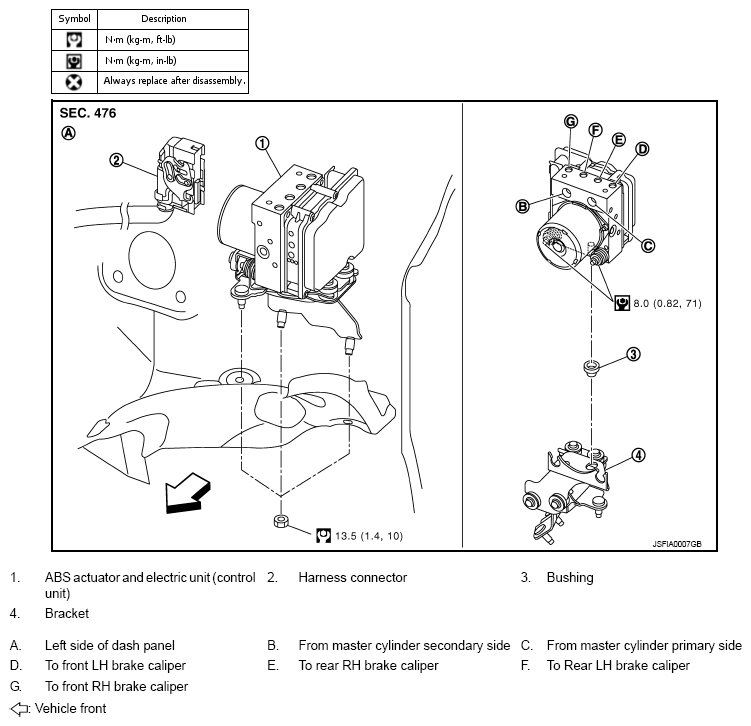

Fig 1: Exploded View Of ABS Actuator And Electric Unit With Torque Specifications (Control Unit)
G08446152Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
